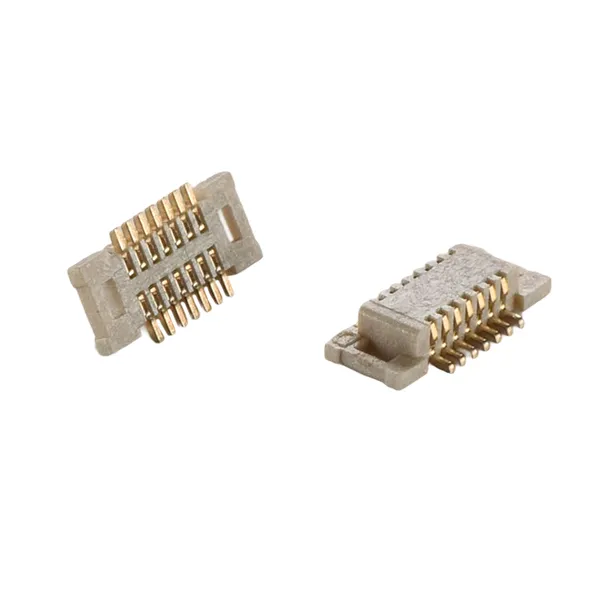

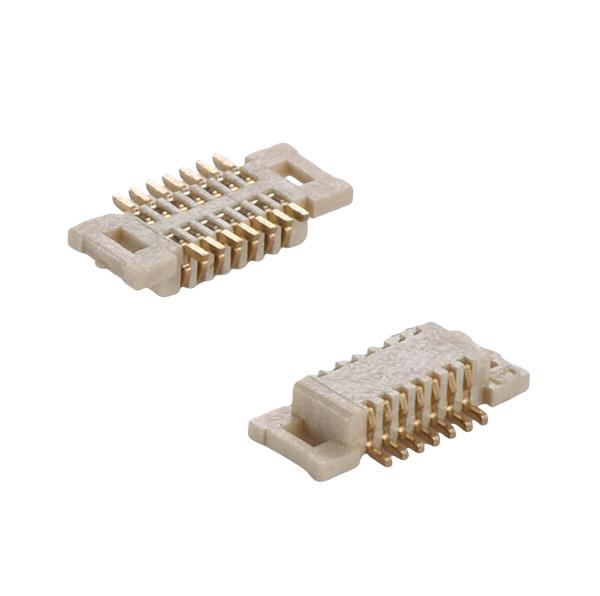

0.8x5.2 Single Slot Side-In Male Connector

Product Introduction

The 0.8×5.2 Single Slot Side-In Male Connector is a high-density board-to-board male connector engineered for compact electronic systems that require stable, space-efficient electrical connections. Its horizontal side-entry design allows the PCB to be inserted from the side, greatly reducing vertical space usage and simplifying assembly in tight layouts.

Featuring a single row of precision-machined pins, this side-in male connector delivers stable power and signal transmission while mAIntaining a minimal PCB footprint. The connector is manufactured using high-performance insulating materials and gold-plated contacts, ensuring durability, corrosion resistance, and excellent Signal Integrity even in harsh environments.

This connector is widely used in consumer electronics, industrial control, communication modules, and embedded systems—ideal for engineers seeking a reliable, compact, and cost-efficient interconnect solution.

Product Advantages

• 1. Ultra-Compact 0.8 mm Pitch Design

• The optimized 0.8×5.2 mm footprint supports high-density PCB layouts where space is limited, making it suitable for small-form-factor devices.

• 2. Reliable Side-In Mating Mechanism

• The horizontal insertion structure ensures consistent mating force, strong retention, and reduced risk of misalignment—ideal for vibration-prone environments such as robotics and industrial automation.

• 3. High Electrical Performance

• Gold-plated contacts for low Contact Resistance

• Stable high-frequency signal transmission

• Supports both power and data applications

• Improves signal integrity across high-speed circuits

• 4. Durable Construction for Long Service Life

• Engineered to withstand hundreds of mating cycles without degradation, suitable for mass-production equipment and maintenance applications.

• 5. Fast & Error-Free Assembly

• The push-in/slide-in side-entry design shortens assembly time and reduces installation errors, supporting automated and manual processes.

• 6. Enhanced Environmental Protection

• The insulated housing provides resistance against:

• Dust

• Moisture

• Temperature fluctuations

• Corrosion

Typical Applications

The 0.8×5.2 Single Slot Side-In Male Connector is widely used in devices requiring miniaturization, stable signal transmission, and reliable power delivery.

Consumer Electronics

Smartphones, tablets, wearables, smart home devices, and compact electronics.

Industrial Automation & Robotics

Control boards, sensor modules, motor drivers, and industrial control units requiring vibration-resistant connections.

Embedded Systems & Communication Modules

IoT devices, wireless modules, edge computing systems, and micro-controller-based hardware.

Medical Equipment

Diagnostics units, portable medical devices, monitoring systems with strict reliability requirements.

Data Storage & Computing Devices

Server modules, SSD units, data acquisition boards, and mini-PC motherboards.

Q&A

Q: How many pins are available?

This connector includes a single row of precision-aligned pins, with multiple pin-count configurations available to match your system needs.

Q: Does it support high-frequency or high-speed signals?

Yes. With gold-plated contacts, the connector supports high-frequency, high-speed Data Transmission with low interference.

Q: What is the durability of this connector?

It is designed for hundreds of mating/unmating cycles, maintaining stable performance throughout its service life.

Q: Can it carry both power and signal?

Absolutely. The connector supports dual-function use depending on current and voltage design requirements.

Q: Is installation simple?

Yes. The side-in slide/push structure provides easy and reliable installation for automated assembly lines or manual repair.
