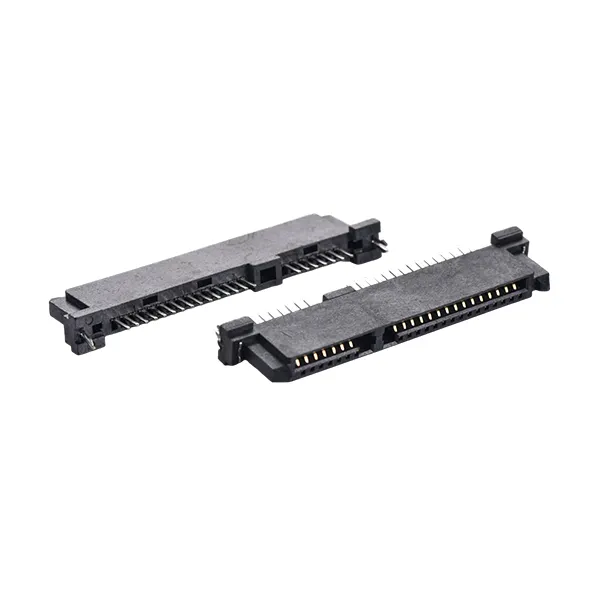

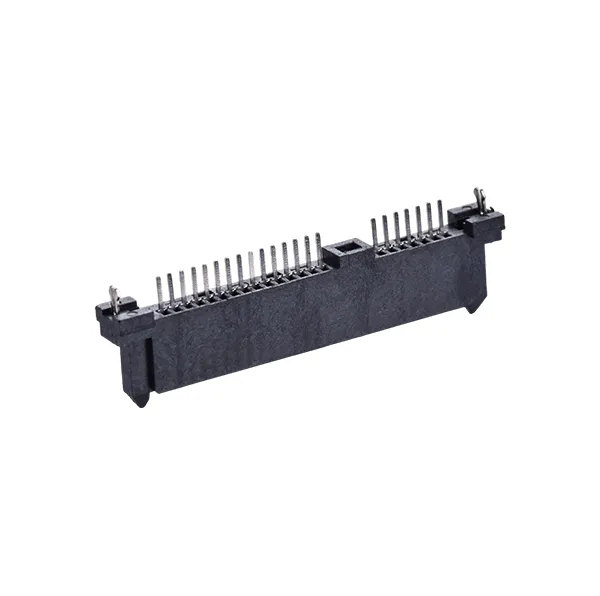

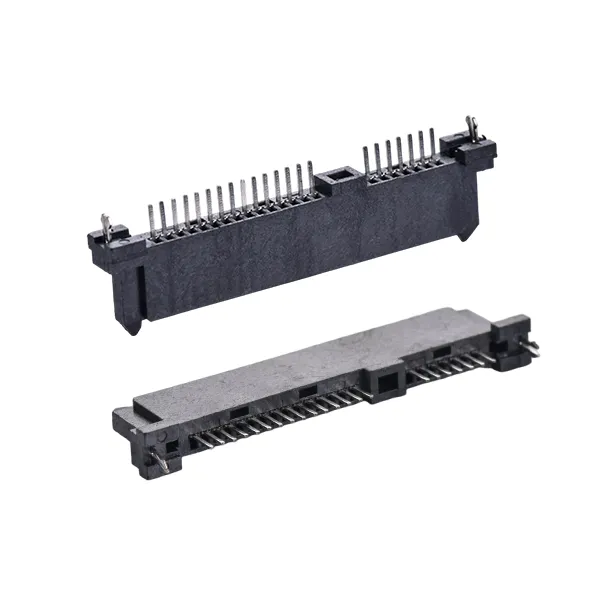

The SATA 7+15P Single Row 180° Plug-in Board with Fork Terminal Female Connector is a high-performance wire-to-board connector designed for SATA data and power transmission in electronic and industrial systems. Featuring a horizontal 180° orientation, it allows quick and secure mating with corresponding male connectors on PCBs, storage devices, or system boards.
The fork terminal female design ensures a firm and vibration-resistant grip on wire leads, enabling stable electrical connections in demanding environments. Built from high-strength engineering plastics and corrosion-resistant contacts (gold or tin plated), it provides low electrical resistance, excellent durability, and long service life.
Thanks to its compact form factor and easy assembly, the connector is widely used in industrial control systems, consumer electronics, automation equipment, and renewable energy devices, ensuring efficient wiring and reliable system performance.
The SATA 7+15P connector is engineered for reliability, durability, and ease of integration. Its key benefits include:
Secure SATA Data & Power Transmission – Supports 7-pin data and 15-pin power interfaces, ensuring stable high-speed signal and power delivery.
180° Space-Saving Orientation – Horizontal plug-in design ideal for tight PCB layouts and compact device enclosures.
Fork Terminal Female Structure – Provides solid wire retention, preventing accidental disconnection in vibration-heavy or industrial environments.
Low Resistance, High Conductivity – Gold/tin plated contacts minimize electrical loss and improve Signal Integrity.
Rugged & Reliable Housing – Flame-retardant insulating material protects agAInst dust, moisture, and mechanical impact.
Quick Assembly & Maintenance – Plug-and-play style connection saves time in both OEM production lines and aftermarket servicing.
Long-Term Durability – Withstands multiple mating cycles without degradation in conductivity or mechanical stability.
The SATA 7+15P Single Row 180° Fork Terminal Female Connector is suitable for a wide range of industrial, consumer, and automation applications:
Industrial Control Systems – Used in motor drivers, power supplies, and controller boards where robust and reliable wiring is required.
Data Storage & Electronics – Common in HDDs, SSDs, servers, and embedded computing devices requiring SATA power and signal integration.
Automation Equipment – Supports compact wiring for factory automation and robotics systems.
HVAC & Building Automation – Ensures reliable connections in heating, ventilation, and air conditioning systems.
Renewable Energy Systems – Applied in solar power inverters, battery storage units, and energy monitoring devices.
Consumer Electronics – Found in appliances, portable devices, and multimedia equipment demanding secure wire-to-board connections.
Q: What does "SATA 7+15P" mean?
A: It refers to the standard 7-pin data interface + 15-pin power interface, commonly used in SATA drives and storage devices.
Q: Is this connector suitable for High-current applications?
A: Yes, the fork terminal structure supports high-current wiring, but actual limits depend on the rated specifications of each model.
Q: How secure is the connection under vibration?
A: The fork terminal female contacts firmly hold wire leads, ensuring stable connections in environments with vibration or mechanical stress.
Q: Can it be used outdoors or in harsh environments?
A: Yes. Its corrosion-resistant plating and insulated housing make it suitable for industrial and semi-outdoor environments. For extreme conditions, environmental rating verification is recommended.
Q: Is installation complicated?
A: No. It features a straightforward plug-in design for quick assembly, ideal for both production lines and maintenance tasks.
