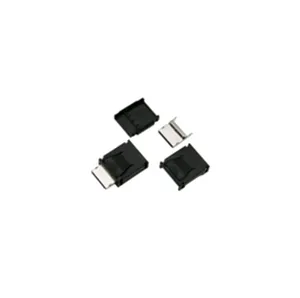

The SFF-8611 4X Clip-Mount Female Connector from Shenzhen Jihongfa Electronics Co., Ltd. is a high-reliability interface component designed for secure mounting on server backplanes, storage enclosures, and industrial control boards. As a specialized variant of the SFF-8611 standard, this 4X Female Header supports high-speed SAS (Serial Attached SCSI) and SATA (Serial ATA) Data Transmission through four dedicated lanes. Engineered with clip-mount (夹板) mechanical fixation, it ensures a stable and vibration-resistant connection in demanding environments. Built by a national high-tech enterprise with ISO certifications, this connector guarantees performance where data integrity and mechanical durability are paramount.
Jihongfa Electronics leverages its expertise in precision Connector Manufacturing—spanning SATA, USB3.0, and OBD products—to deliver this robust solution. It is an ideal choice for system designers and engineers requiring a dependable, standards-compliant interface for data-intensive and Industrial Applications.
The SFF-8611 4X Clip-Mount Female Connector is a board-mountable female header conforming to the SFF-8611 mechanical and electrical specification. The "4X" designation indicates it supports four data lanes, typically used for a single-port SAS 2.0/3.0 or SATA III connection. The clip-mount design features integrated retention clips that securely fasten the connector to the PCB upon insertion, providing enhanced mechanical stability compared to standard press-fit or solder-only mounts. This makes it particularly suitable for applications subject to vibration, shock, or frequent mating cycles.
This connector is a fundamental building block for creating reliable data pathways in systems where the storage or communication interface must remAIn secure under operational stress. It is manufactured by Jihongfa Electronics, a company with a proven track record in supplying connectors for computers, new energy vehicles, and communication devices.
1. Robust Electrical Performance
High-Speed Capable: Designed for SAS 2.0 (6 Gb/s), SAS 3.0 (12 Gb/s), and SATA III (6 Gb/s) protocols, ensuring clean signal transmission for data and storage applications.
Premium Contact Materials: Utilizes phosphor bronze (C5191H) for signal pins and brass (C2680H) for power pins, both with a thickness of 0.25mm, offering an optimal balance of spring performance and current carrying capacity.
Superior Plating: Contacts feature a nickel underplate (30-100μ") and selective gold plating in the mating area for low Contact Resistance and durability, with tin plating (80-200μ") on solder tails for excellent solderability.
Guaranteed Electrical Specs:
Rated Current/Voltage: 1.5A, 40V.
Contact Resistance: ≤30 mΩ (increase ≤15 mΩ after mating).
Insulation Resistance: ≥1000 MΩ @ 100V DC.
Withstanding Voltage: 500 Vr.m.s for 60s.
2. Enhanced Mechanical Reliability
Secure Clip-Mount Design: Integrated retention clips provide a positive lock to the PCB, preventing loosening from vibration—a critical feature for industrial and automotive applications.
Optimized Mating Forces: Insertion force ≤45N, Extraction force ≥10N, and Contact retention force ≥5N per pin ensure a secure, user-friendly mating interface that withstands operational stress.
Durable Housing: The insulator is made from high-temperature, flame-retardant materials (see material code table), ensuring dimensional stability and safety.
3. Manufacturing & Application Excellence
Process Resilience: Withstands solder heat resistance of 250°C±5°C for 10 seconds, compatible with standard reflow soldering processes.
Standardized Packaging: Supplied in industry-standard packaging with a minimum order quantity of 500 pieces, facilitating efficient production logistics.
Proven Supplier: Manufactured by Jihongfa Electronics, an experienced and certified partner to the electronics industry, ensuring consistent quality and reliable supply.
Engineered for Tough Environments: The clip-mount feature and robust electrical specs make it ideal for applications beyond standard data centers, including industrial and vehicular systems.
Guaranteed Signal Integrity: High-quality materials and precise manufacturing ensure reliable performance for high-speed data transfer.
Simplified Assembly & Reliability: The clip-mount design enhances assembly reliability and long-term connection stability, reducing potential field failures.
Trusted Manufacturer: Backed by Jihongfa's expertise in connector design and production for demanding markets like automotive and computing.
The SFF-8611 4X Clip-Mount Female Connector is engineered for stability and performance in critical applications:
Industrial Servers & Controllers: Backplane connections in ruggedized servers and PLCs used in manufacturing and automation.
Embedded Storage Systems: Single-drive interfaces in compact, fanless computers, kiosks, and digital signage.
Automotive Data Systems: In-vehicle infotainment (IVI) systems or telematics units requiring reliable storage interfaces (where specifications allow).
Security & Surveillance Equipment: NVRs (Network Video Recorders) and storage units for continuous data recording.
Test & Measurement Equipment: Internal storage interfaces in rugged portable or benchtop instruments.
Q1: What is the primary advantage of the clip-mount design?
A: The clip-mount (夹板) design provides superior mechanical retention to the PCB. It prevents the connector from loosening or becoming dislodged due to vibration, shock, or repeated cable mating cycles, which is crucial in industrial or mobile applications.
Q2: Can this 4X connector be used for dual-port SAS drives?
A: No. A standard dual-port SAS connection requires 8 lanes (8X). This 4X connector is designed for a single-port SAS or a single SATA device connection.
Q3: What do the different pin materials (7P Phosphor Bronze, 15P Brass) indicate?
A: This is a common design. The 7 signal pins are made from phosphor bronze for its excellent spring properties and electrical conductivity for high-speed signals. The 15 power pins are made from brass for its good current-carrying capacity and mechanical strength at a lower cost.
Q4: Is this connector lead-free and RoHS compliant?
A: While the provided notes specify tin plating on solder tails, full material declarations and RoHS compliance should be confirmed with Jihongfa Electronics. As a modern manufacturer serving global markets, their products are typically designed to meet RoHS directives.
Q5: What is the operating temperature range?
A: The specific operating temperature range depends on the housing material. Please consult Jihongfa's detailed datasheet or contact them directly for this specification, which is vital for industrial applications.
Q6: Do you offer mating male connectors or cable assemblies?
A: Yes, as a full-service connector company also producing wire harnesses, Jihongfa can typically provide the mating male connectors (e.g., SFF-8611 to SATA/SAS drive connectors) and complete cable assemblies.
