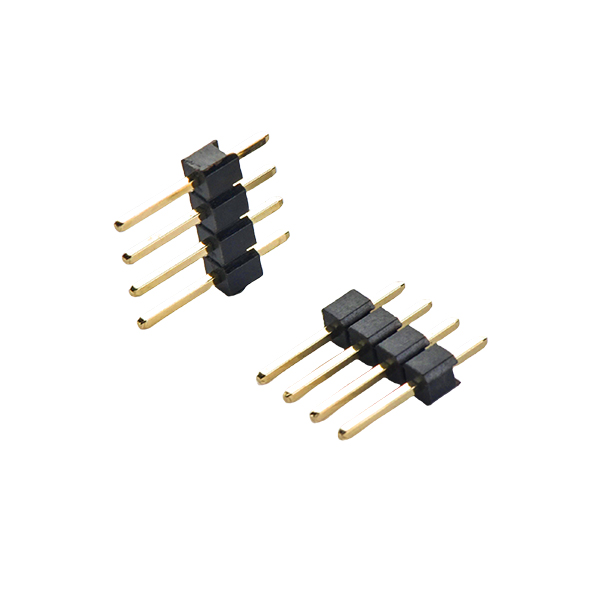

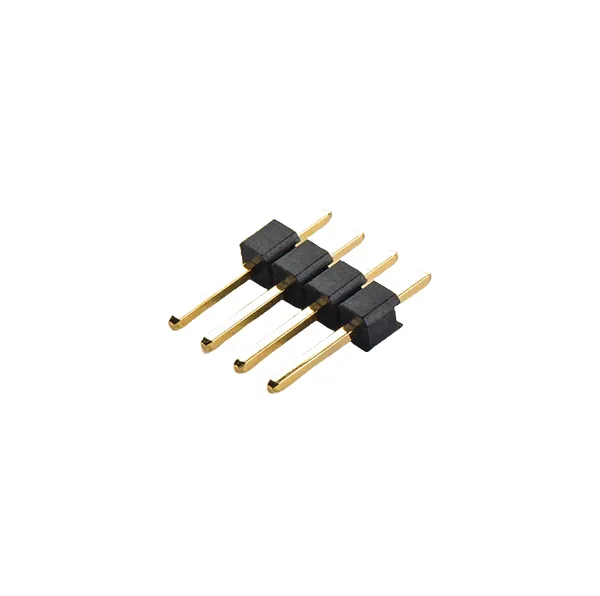

The 2.54MM Pin Header Connector 1x4P is a standard yet essential component in modern electronic circuit design. Engineered for stable and efficient electrical connections, this connector features a single row of 4 metal pins, precisely spaced at 2.54mm pitch—the most widely used standard in the electronics industry.
Each pin is crafted from high-conductivity materials such as brass, phosphor bronze, or copper, and is plated with gold, tin, or nickel for superior corrosion resistance and optimal electrical performance. These headers are designed for through-hole or surface-mount soldering, ensuring strong and reliable bonding to PCBs.
The 2.54MM pin header provides a modular interface for connecting jumper wires, ribbon cables, or other components, making it ideal for development boards, embedded systems, industrial control units, and custom PCB designs.
Key Benefit: The standard 2.54mm spacing ensures universal Compatibility with a wide range of connectors and electronic modules.
The 2.54MM 1x4P pin header offers several advantages that make it a preferred choice among engineers, manufacturers, and electronics hobbyists:
Universal 2.54mm Pitch Compatibility – Works seamlessly with standard PCB layouts, jumper cables, and breadboards.
Excellent Electrical Performance – Gold/tin/nickel plating provides low Contact Resistance and ensures stable signal transmission.
Durable Construction – Designed to withstand multiple mating cycles without loss of connectivity.
Flexible Mounting Options – AvAIlable in through-hole and SMD versions for different assembly needs.
Space-Efficient Design – Compact 1x4P configuration supports high-density PCB layouts without sacrificing performance.
Cost-Effective and Reliable – Simple design and durable materials make it ideal for mass production or custom electronics projects.
JHF Connect provides customized 2.54mm pin headers with different plating options, lengths, and packaging configurations—tailored to your specific project or manufacturing requirements.
The 2.54MM Pin Header Connector 1x4P is widely adopted in both commercial and industrial electronics, including:
Microcontroller & Development Boards: Quick connections for Arduino, Raspberry Pi, ESP32, and other platforms.
Industrial Automation Systems: Reliable interfaces for sensors, relays, and control modules.
Consumer Electronics: Used in smart home devices, wearables, and compact appliances.
Robotics & Embedded Systems: Modular PCB stacking and easy signal interfacing.
Automotive Electronics: Vibration-resistant interconnections for control and monitoring modules.
Communication Equipment: Secure data and power transmission in routers, modems, and IoT devices.
These connectors help engineers design modular, scalable, and easy-to-maintain circuits, saving both space and assembly time.
A: They are primarily used for signal and low-to-medium current connections. For high-current systems, opt for specialized power connectors designed for higher amperage ratings.
A: Both through-hole (THT) and surface-mount (SMD) types are available to fit different PCB manufacturing processes.
A: Simply insert jumper wires, ribbon cables, or matching Female Headers onto the male pins to establish a secure and reliable connection.
A: Yes, they can be reused multiple times as long as the pins remain straight and undamaged.
A: Check the pin count (1x4P), pitch (2.54mm), and mounting type to ensure proper fit with your board layout.
