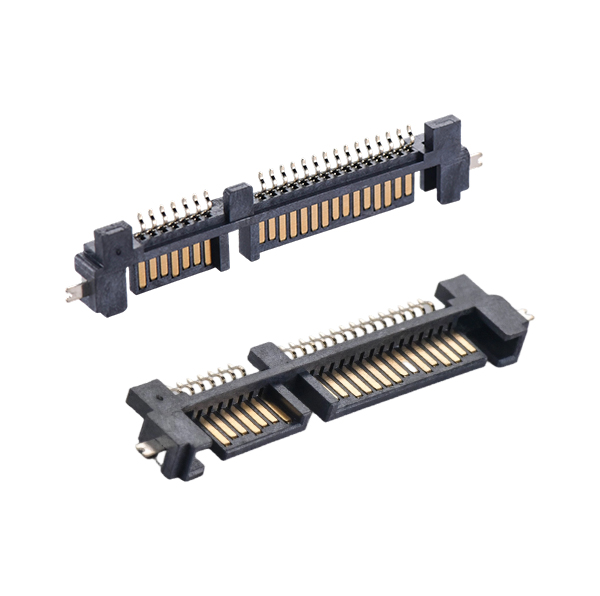

SATA 7+15P SMT Thru-Hole Male Connector

Product Introduction

High-quality SATA 7+15P SMT thru-hole male connector designed for stable data and power transmission in HDDs, SSDs, servers, and embedded systems. Gold/tin-plated contacts, strong PCB retention, and full SATA III Compatibility ensure long-lasting reliability.

The SATA 7+15P SMT Thru-Hole Male Connector is a 22-pin board-mount interface that combines both 7-pin data and 15-pin power contacts in a compact, space-saving design.
Engineered for high-speed data transfer (SATA III up to 6 Gb/s), it ensures excellent Signal Integrity, low Contact Resistance, and durable mechanical performance — even under vibration, temperature variation, or high plug cycles.

This connector is ideal for HDDs, SSDs, servers, and embedded applications, providing a standardized SATA interface for OEM and industrial systems.

Product Advantages

Integrated Data + Power Interface

Combines 7 data pins + 15 power pins in a single compact SATA Connector, simplifying PCB layouts and cable management.

Dual Mounting Technology (SMT & Thru-Hole)

Provides both surface-mount and through-hole soldering options, ensuring superior mechanical strength and reliability on PCBs.

High-Speed Performance (SATA III)

Gold/tin-plated contacts deliver low-loss signal transmission and stable 6 Gb/s data rates, supporting modern storage and computing devices.

Robust & Durable Construction

Withstands frequent mating/unmating cycles and mechanical stress — perfect for industrial, automotive, and enterprise environments.

Environmental Resistance

Flame-retardant thermoplastic housing provides insulation agAInst dust, moisture, and heat.

Easy Assembly & Automation Ready

Compatible with wave and reflow soldering, allowing seamless integration into automated manufacturing or manual assembly lines.

Typical Applications

The SATA 7+15P Thru-Hole Male Connector is widely used in high-reliability storage and computing systems:

Computing Devices – Desktops, servers, workstations, and storage backplanes

Industrial Automation – Control units, robotics, and rugged monitoring systems

Communication Equipment – Routers, base stations, and telecom servers

Embedded Systems – IoT modules, medical devices, compact boards

OEM / ODM Solutions – Customized storage boards and power-data hybrid interfaces

Q&A

Q: How many pins does this connector have?

A: It features 22 total pins (7 for data + 15 for power), fully compliant with SATA specifications.

Q: Is it compatible with standard SATA drives?

A: Yes. It meets SATA standards and works seamlessly with all HDDs, SSDs, and hybrid drives.

Q: Does the thru-hole design improve durability?

A: Yes. The thru-hole solder joints provide superior mechanical strength, ideal for environments with vibration or movement.

Q: Can it support SATA III speeds?

A: Absolutely. The gold/tin-plated contacts ensure stable, low-loss transmission up to 6 Gb/s (SATA III).

Q: Is the assembly process complicated?

A: Not at all. The connector supports wave and reflow soldering, suitable for both manual and automated assembly lines.
