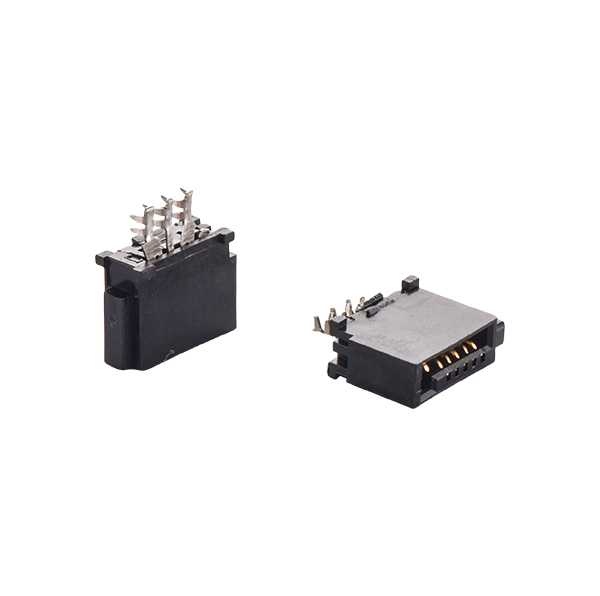

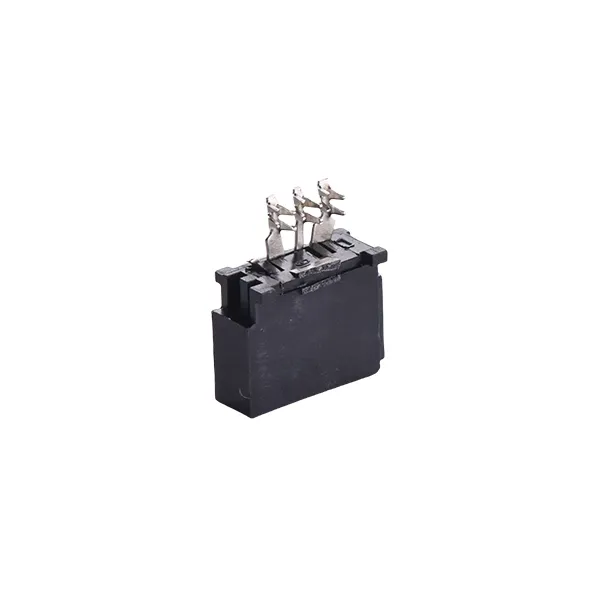

The SATA 6P Rivet female connector Type F is a high-reliability panel-mount SATA Connector designed for secure power and Data Transmission in storage and electronic systems. Featuring six precision-aligned contacts compliant with SATA standards, this connector provides a stable interface between HDDs, SSDs, and host systems, ensuring reliable Signal Integrity and consistent power delivery.
The Type-F rivet mounting structure enables the connector to be firmly installed on metal panels, device chassis, or printed circuit boards (PCBs). This installation method creates a permanent and vibration-resistant connection, making it suitable for environments where mechanical stability and long-term reliability are essential. Constructed with high-strength thermoplastic housing and gold- or tin-plated copper alloy contacts, the connector delivers low electrical resistance, high conductivity, and excellent corrosion resistance. Its rugged design ensures dependable performance even under continuous operation or repeated mating cycles. This SATA 6-pin rivet female connector is widely used in industrial electronics, storage systems, servers, and embedded computing devices, making it an ideal solution for applications requiring compact size, secure mounting, and stable SATA connectivity.
The SATA 6P Rivet Female Connector Type F offers several key advantages that make it suitable for demanding electronic systems: Secure Rivet Mounting The rivet installation method provides a permanent and vibration-resistant connection, preventing loosening during long-term operation or mechanical movement. SATA-Compatible 6-Pin Configuration The connector complies with SATA interface standards and supports high-speed data transmission up to 6 Gbps, ensuring stable communication between storage devices and host systems. High Conductivity Contacts Gold or tin-plated copper contacts minimize electrical resistance and mAIntain consistent signal integrity and power transmission. Durable Protective Housing The rugged thermoplastic housing provides excellent electrical insulation and mechanical protection, shielding internal contacts from dust, moisture, and physical stress. Long-Term Reliability Designed to withstand hundreds of mating cycles, the connector maintains stable electrical performance throughout its service life. Easy Installation and Assembly The rivet mounting design simplifies installation during manufacturing, assembly, or equipment maintenance, improving efficiency and reducing labor costs.
The SATA 6P Rivet Female Connector Type F is widely used in applications requiring stable internal SATA connections and secure panel installation, including:
Storage Systems HDD and SSD storage enclosures, drive bays, and custom storage devices requiring reliable SATA interfaces.
Servers and Data Centers Rack-mounted servers and storage infrastructure operating continuously in high-performance environments. Industrial Computers Industrial PCs and embedded computing platforms requiring vibration-resistant connectors.
Consumer Electronics Gaming consoles, high-performance workstations, and media storage systems.
Embedded and Automation Equipment Automation controllers, surveillance systems, and other embedded devices requiring durable internal SATA connections.
Q1: How is the SATA 6P Rivet Female Connector Type F installed?
The connector is installed using a rivet mounting method, allowing it to be securely attached to panels, chassis, or PCBs. This method ensures stable mechanical fixation and resistance to vibration.
Q2: Does this connector support high-speed SATA data transmission?
Yes. The connector complies with SATA interface standards and supports data transfer speeds up to 6 Gbps, making it suitable for modern HDD and SSD devices.
Q3: Can the connector be reused after removal? Rivet mounting is designed for permanent installation.
Removing and reinstalling the connector may reduce mechanical stability and is generally not recommended.
Q4: What operating environments is this connector suitable for?
It performs well in indoor electronics, industrial equipment, storage systems, and other environments where vibration resistance and stable connections are required.
Q5: What should I consider before selecting this SATA connector?
When choosing a SATA connector, consider the mounting method, SATA interface Compatibility, available installation space, operating environment, and required durability.
