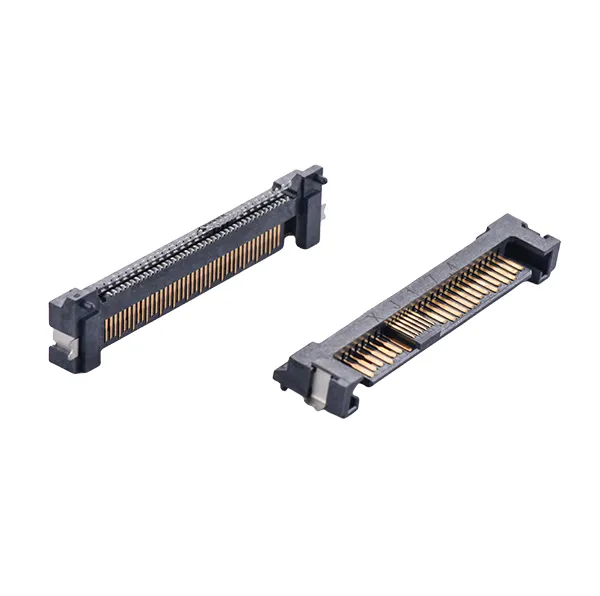

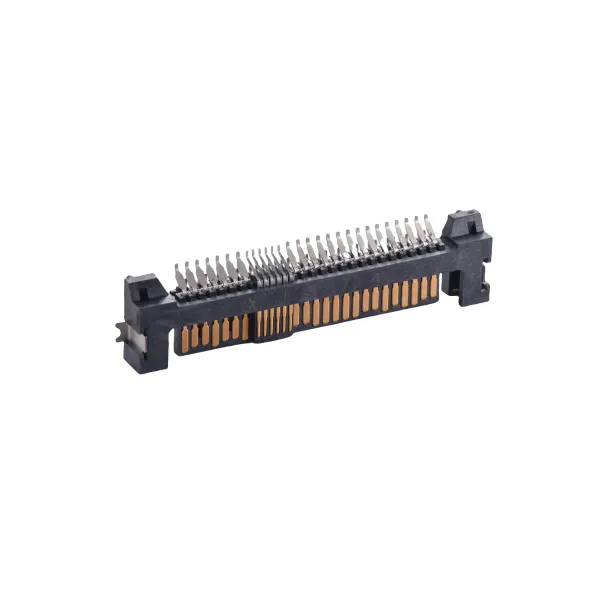

The SFF 8639 SMT Type Flush Mount Male Connector, also known as a U.2 PCIe NVMe male connector, is a high-density, surface-mount interconnect designed for enterprise storage systems, servers, and high-performance computing platforms. Compliant with the SFF-8639 (U.2) standard, this connector supports PCIe Gen3 and Gen4 NVMe SSDs, delivering high-speed Data Transmission up to 32 Gbps with stable Signal Integrity. Its SMT flush-mount structure allows the connector to be mounted level with the PCB surface, reducing overall system height while improving mechanical stability and assembly efficiency in dense, space-constrAIned designs. Manufactured with flame-retardant thermoplastic housing and precision gold-plated contacts, the connector ensures low Contact Resistance, corrosion resistance, and long-term reliability across repeated mating cycles.
SMT Flush Mount Design
Enables low-profile PCB layouts, improves mechanical strength, and supports compact server and storage architectures.
High-Speed PCIe NVMe Support Optimized for U.2 NVMe SSD applications, supporting PCIe Gen3/Gen4 data rates up to 32 Gbps.
Automated SMT Assembly Compatible
Designed for reflow soldering and automated production lines, improving manufacturing efficiency and consistency.
Gold-Plated Contacts for Signal Integrity
Minimize electrical resistance and signal loss, ensuring stable high-speed data transmission.
Durable & Flame-Retardant Housing
Provides insulation, mechanical protection, and resistance to dust, vibration, and thermal stress.
High Mating Cycle Reliability
Engineered for hundreds of mating cycles, suitable for enterprise and industrial-grade deployments.
Enterprise Storage Systems & Data Centers
U.2 NVMe SSD connections in servers, storage arrays, and enclosures.High-Density Rack Servers
Reliable PCIe connectivity in space-limited chassis designs.
Cloud & Networking Infrastructure
Stable, high-bandwidth PCIe links for mission-critical workloads.
AI / ML, FPGA & ASIC Platforms
High-speed, low-latency interconnects for data-intensive processing.Industrial & Edge Computing Systems Compact, robust design suitable for embedded and rugged environments.
Blade Servers & RAID Modules
Optimized for high-density storage backplanes requiring stable performance.
A: It means the connector is surface-mounted and sits flush with the PCB surface, enabling compact layouts, improved mechanical stability, and automated assembly.
A: It supports PCIe Gen3 and Gen4 NVMe SSDs with data transfer speeds up to 32 Gbps.
A: Yes. Its low-profile SMT design is ideal for dense server, storage, and backplane applications.
A: It is designed for hundreds of mating cycles while maintaining stable electrical performance.
A: Yes. The connector is fully compatible with standard SMT reflow soldering processes.
