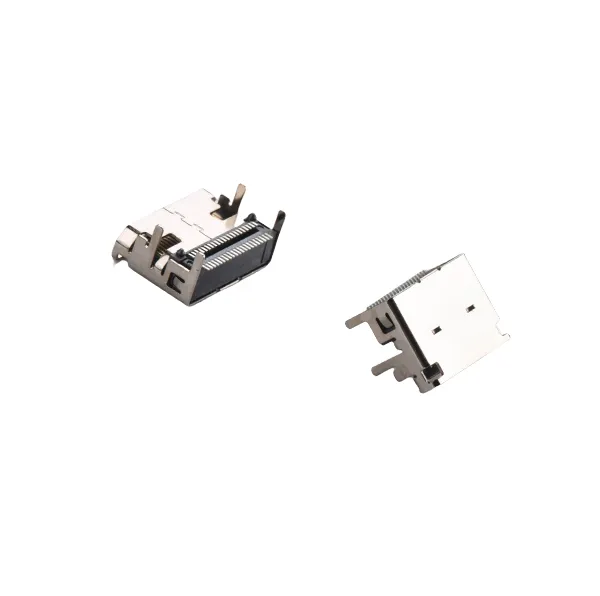

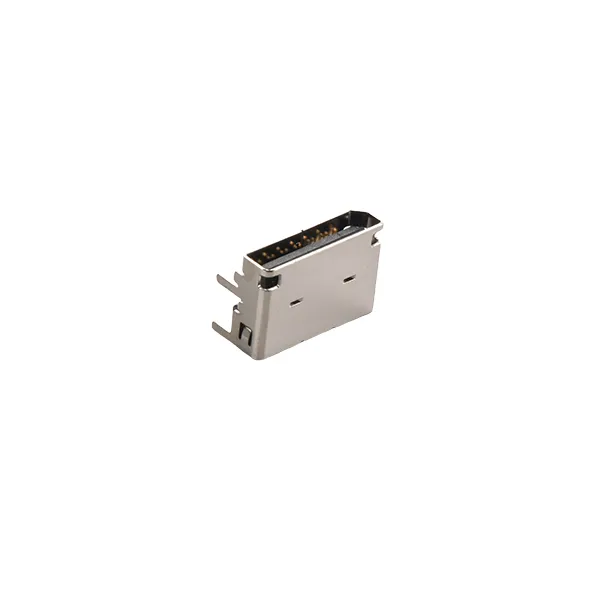

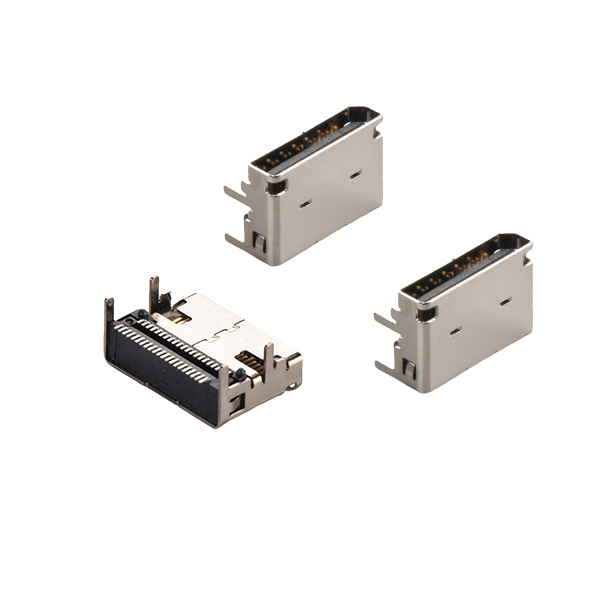

The SFF-8612 4X Flat Mount Male Connector is a high-performance, surface-mount PCIe interface designed for enterprise storage, data centers, and high-density computing systems. Built to the SFF-8612 industry standard, it supports 4 PCIe lanes (PCIe 4.0/5.0 compatible), delivering high-bandwidth Data Transmission ideal for NVMe SSDs, server backplanes, and AI/edge computing devices.
Thanks to its flat surface-mount design, the connector enables space-efficient PCB integration and offers reliable electrical performance with gold-plated contacts and a durable plastic housing. This makes it a preferred component for OEMs building high-speed, compact, and long-life hardware systems.
Supports 4 PCIe lanes, compatible with PCIe Gen4 and Gen5, enabling up to 128Gbps high-speed data throughput.
Ensures fast and stable communication between NVMe SSDs and host systems, making it ideal for high-bandwidth applications.
Flat SMT (Surface-Mount) design optimizes PCB layout and reduces system height.
Ideal for dense server racks, blade servers, and compact storage systems.
Reduces signal loss and maintains stable electrical performance.
Withstands hundreds of mating cycles, prolonging product lifespan in enterprise environments.
High-grade plastic housing provides insulation, dust protection, and mechanical strength.
Secure locking mechanism prevents disconnection in vibration-prone or industrial environments.
Suitable for continuous 24/7 operation in data centers and HPC systems.
Supports future-proof system upgrades requiring faster PCIe interfaces.
The SFF-8612 4X Flat Mount Male Connector is widely used in:
NVMe SSD connections
Server backplanes and motherboard interfaces
NAS and SAN systems
AI servers
Machine learning clusters
Big data and analytics platforms
Highly compact server architectures
Hyper-converged infrastructure
Edge AI devices requiring high-speed PCIe links
Rugged computing devices
Industrial automation
Space-limited embedded systems
Its reliability and compact profile make it ideal for OEM engineers seeking high-speed, long-life, and easy-integration connectors.
The flat SMT design minimizes height, saves PCB space, and enables efficient thermal and layout management in dense computing systems.
Yes. The connector fully supports PCIe 4.0 and 5.0, ensuring Compatibility with current and next-generation NVMe storage devices.
It is engineered to endure hundreds of mating cycles, providing stable performance over long-term enterprise operation.
No. The SMT design simplifies manufacturing and assembly, while the locking structure ensures secure mating without additional tools.
Yes. The connector's rugged housing and corrosion-resistant contacts make it suitable for industrial and edge applications. For extreme environments, external sealing may be required.
