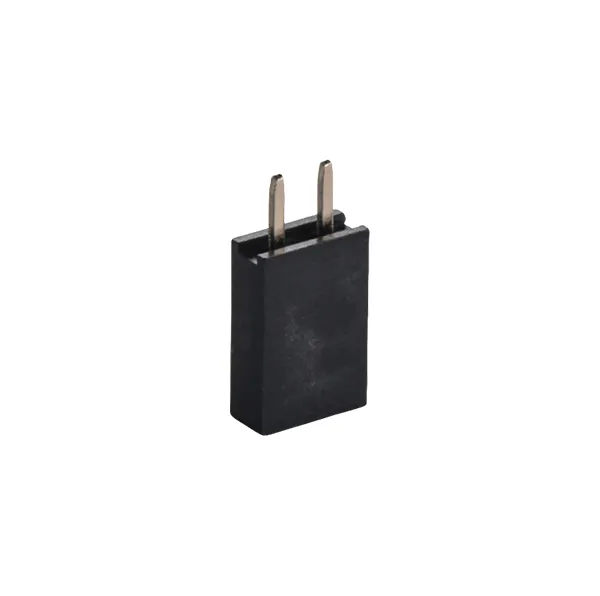

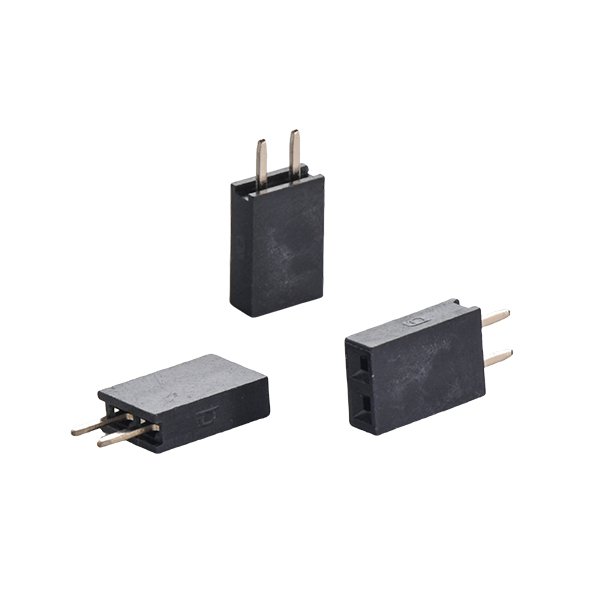

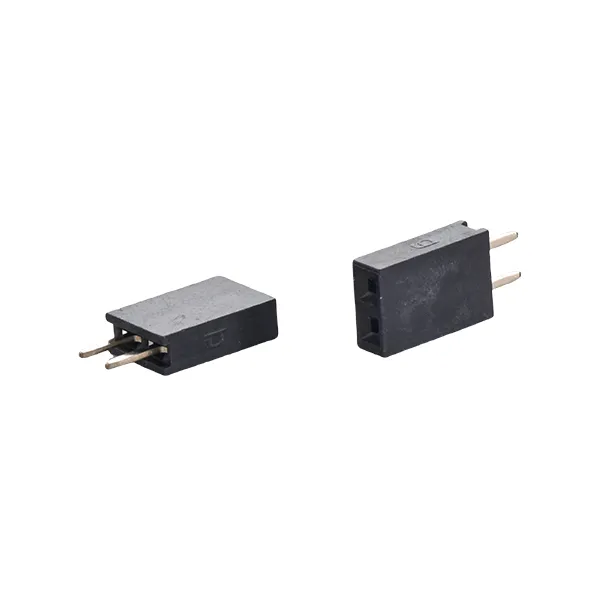

The 2.54mm Single Female Header Connector 1x2P is a compact and reliable solution for establishing secure electrical connections on printed circuit boards (PCBs). Designed with a standard 2.54mm pitch and a single row of female sockets, it ensures Compatibility with a wide range of male headers, jumper wires, and modules.
Constructed from flame-retardant thermoplastic housing and high-conductivity brass or phosphor bronze contacts, this connector provides excellent durability and corrosion resistance. Plating options such as tin, gold, or nickel further enhance Signal Integrity and long-term reliability.
Ideal for through-hole PCB mounting, this connector supports stable mechanical retention and consistent performance across applications—from rapid prototyping and development boards to mass production in industrial and consumer electronics.
Standard 2.54mm pitch — fully compatible with most headers, jumper wires, and PCB layouts.
Durable design — high-quality metal contacts and thermoplastic housing ensure long service life.
Easy integration — supports quick plug-and-play connections for modular or expandable systems.
Reliable contact performance — gold/tin/nickel plating ensures low resistance and minimal signal loss.
Versatile use — ideal for microcontroller boards, communication devices, industrial automation, and more.
Stable under vibration and temperature variation — suitable for harsh environments such as automotive systems.
The 2.54mm Single Female Header Connector is widely used in:
Microcontroller and development boards – connecting sensors, displays, and peripheral modules.
Embedded systems & prototyping – ideal for modular testing, debugging, and circuit iteration.
Industrial automation – connecting PLCs, sensors, and actuators in control systems.
Automotive electronics – reliable interconnects for vibration-prone environments.
Consumer & smart devices – smart home equipment, medical instruments, and wearable tech.
FAQs (Frequently Asked Questions)
Q: What wire sizes are compatible with 2.54mm female headers?
A: They typically fit standard male pins that support wire gauges from 22 AWG to 26 AWG. Always check datasheet detAIls for exact specifications.
Q: Are these headers reusable?
A: Yes. They can be reconnected multiple times as long as the contacts remain undamaged and within tolerance.
Q: Are these suitable for high-vibration applications?
A: Yes, especially when used with locking jumper wires or secured mounting. They maintain a stable connection under vibration.
Q: What should I consider when selecting a female header connector?
A: Key factors include pitch (2.54mm), number of pins, mounting type (through-hole or SMT), and plating material for conductivity.
