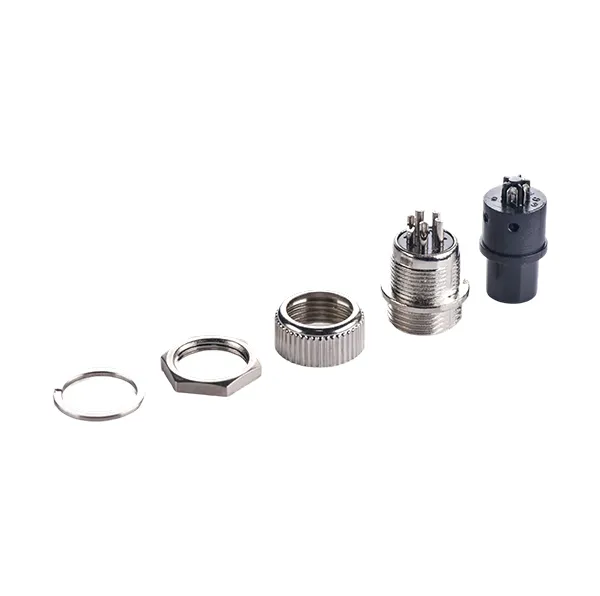

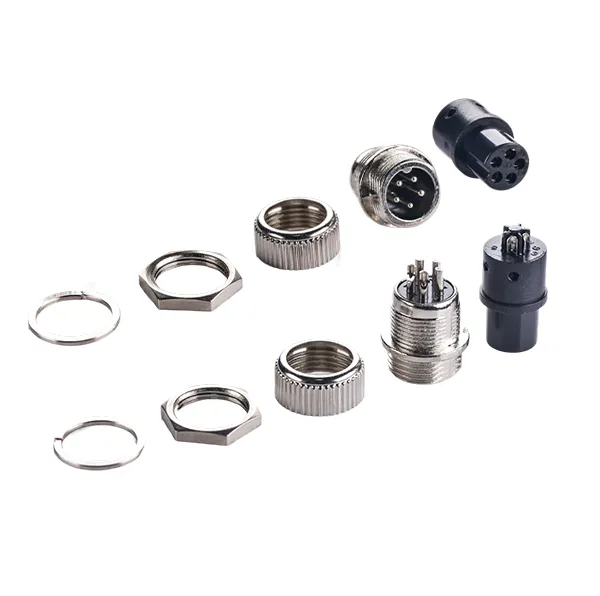

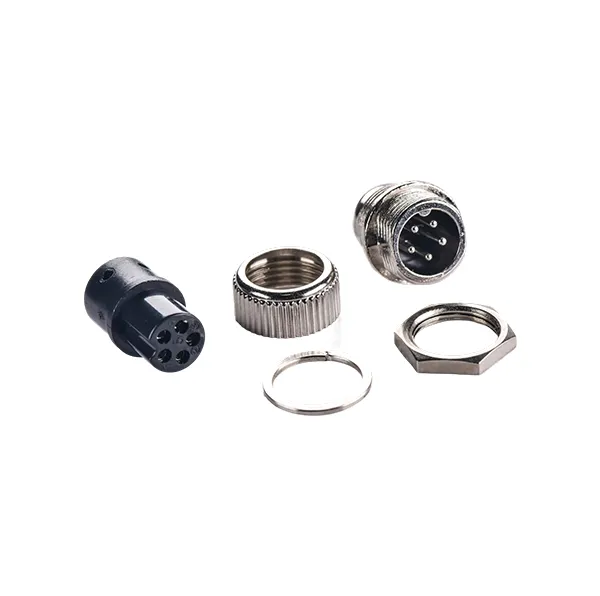

The M12 5P Male and Female Connector with Nut and Cap is a high-quality industrial connector designed for secure and reliable electrical transmission in demanding environments. With its 5-pin configuration, this connector is widely used for signal, data, and power transmission in applications such as factory automation, sensors, robotics, and control systems.
Built with a durable plastic housing and plated with corrosion-resistant materials like gold or tin, the connector ensures excellent conductivity, low Contact Resistance, and long-term stability. This makes it an ideal choice for industries that require consistent and high-performance connectivity.
The threaded nut and cap design provides a secure locking mechanism that prevents accidental disconnection and resists vibration, ensuring reliability even in environments with frequent movement, mechanical stress, or outdoor exposure.
Designed to meet the needs of industrial automation, machinery control, transportation, and renewable energy applications, the M12 5P connector guarantees dependable connectivity where it matters most.
PGltZyBzcmM9Imh0dHBzOi8vd20uY2RuLmNuODYuY24vaG9uZ2ZhLzIwMjUvMDgvNTY3YjAxMTE2OWZ6a2N1ay5wbmciIGFsdD0iTTEyIDVQIE1hbGUgYW5kIEZlbWFsZSBDb25uZWN0b3Igd2l0aCBOdXQgYW5kIENhcCIgdGl0bGU9Ik0xMiA1UCBNYWxlIGFuZCBGZW1hbGUgQ29ubmVjdG9yIHdpdGggTnV0IGFuZCBDYXAIIHdpZHRoPSI2MDAiIGhlaWdodD0iNTkyIiBib3JkZXI9IjAiIHZzcGFjZT0iMCIgc3R5bGU9InRleHQtd3JhcC1tb2RlOiB3cmFwOyB3aWR0aDogNjAwcHg7IGhlaWdodDogNTkycHg7IGZsb2F0OiByaWdodDsiLz4=
The M12 5P Connector with Nut and Cap delivers multiple advantages that directly solve customer concerns about durability, stability, and ease of use:
Threaded nut and cap prevent accidental disconnections, making it reliable for equipment with continuous movement.
Sealed housing with IP67-rated waterproofing protects against moisture, dust, and harsh environmental conditions.
Gold or tin-plated pins reduce contact resistance and maintain stable electrical performance over long-term use.
Fits into tight or crowded control panels, making wiring and installation more efficient.
Tool-assisted, quick-assembly nut and cap design reduces downtime during installation or repair.
High-quality construction ensures the connector can withstand demanding indoor and outdoor applications.
This combination of features ensures higher equipment reliability, reduced maintenance costs, and long-lasting connectivity performance.
The M12 5P Male and Female Connector with Nut and Cap is versatile and used across multiple industries where robust, waterproof, and vibration-resistant connections are essential:
Factory Automation: Reliable connection for sensors, actuators, IO modules, and control units.
Robotics & Machinery: Withstands vibration and movement in robotics, conveyor systems, and machinery control.
Outdoor Applications: Ideal for weather stations, outdoor sensors, and monitoring devices requiring waterproof sealing.
Transportation & Packaging Machinery: Provides stable data and power transmission in moving equipment and heavy-duty systems.
Medical Devices & Renewable Energy: Ensures dependable connectivity in sensitive and mission-critical environments.
OEM Assemblies & System Upgrades: Perfect for new designs or replacement in existing industrial systems.
A: It supports five pins (5P), enabling multiple signal, data, or power connections in one compact connector.
A: Yes. The connector is IP67-rated, with a waterproof cap and sealing design to protect against dust, water, and moisture ingress.
A: Absolutely. Its compact size and threaded locking system make it ideal for confined installations such as control panels.
A: The threaded nut and cap locking mechanism ensures a vibration-resistant connection, suitable for use in dynamic industrial environments.
A: No. The quick-assembly design supports straightforward installation with basic tools, reducing downtime and ensuring a secure fit.
