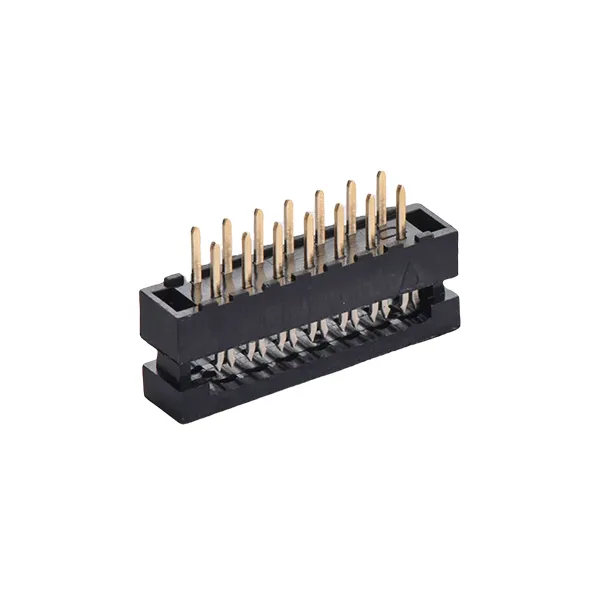

The 2.00mm FD-14P two-piece connector is a compact, high-performance electrical component designed for reliable signal and power transmission in space-constrAIned electronic systems. With a 2.00mm pitch and 14 pins, it enables high-density PCB layouts, making it ideal for applications where miniaturization and stable connections are critical.

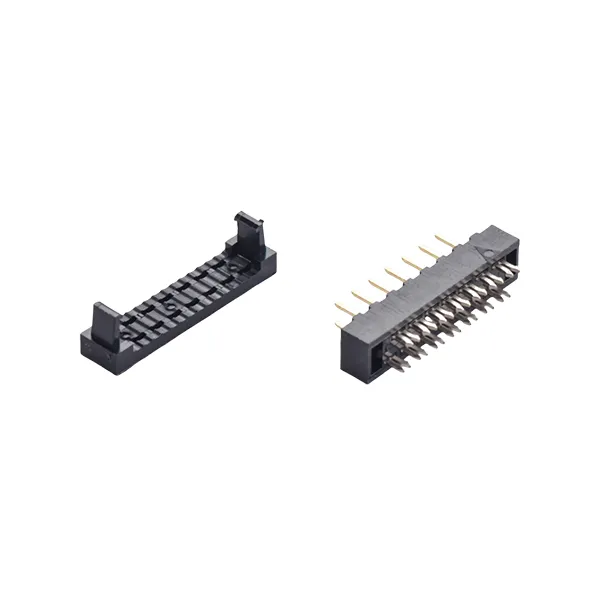

This connector consists of a male header and a female socket, engineered for seamless mating and modular assembly. The contacts are made from copper alloys with gold, tin, or nickel plating, ensuring low Contact Resistance, excellent conductivity, and corrosion resistance. The durable thermoplastic housing provides insulation, strength, and protection against dust and moisture.
Whether in consumer electronics, IoT devices, wearables, medical equipment, or industrial automation, the FD-14P connector delivers secure, modular, and easy-to-maintain interconnections.
Compact 2.00mm pitch → supports high circuit density in portable and lightweight devices.
Two-piece modular design → simplifies assembly, disassembly, prototyping, and maintenance.
High-quality plating (gold/tin/nickel) → reduces contact resistance and ensures long-term Signal Integrity.
Durable housing → provides excellent insulation and mechanical protection.
Precision fit → minimizes signal loss, disconnections, and vibration issues.
Reliable performance → designed for multiple mating cycles in both prototyping and mass production.
Consumer Electronics → wearable devices, smart gadgets, portable devices.
Industrial Automation → sensors, controllers, and I/O modules.
Telecommunications → IoT modules, wireless communication devices.
Medical Devices → portable diagnostic tools and wearable health monitors.
Robotics → motor, sensor, and controller interconnections.
LED Lighting & Power Supplies → compact, stable signal and power links.
Q: What is the maximum current capacity of this connector?
A: It typically supports up to 1A per pin, depending on wire gauge and plating.
Q: How are wires connected to this connector?
A: Wires can be inserted using compatible crimp terminals or connected by through-hole soldering onto a PCB.
Q: Is it suitable for vibration-prone environments?
A: Yes, the secure mating and snug fit make it resistant to vibrations and shocks.
Q: Can it be reused multiple times?
A: Yes, it supports hundreds of mating cycles, though excessive force may cause wear.
Q: What factors should I consider when selecting this connector?
A: Confirm pin count, pitch (2.00mm), current/voltage rating, plating option, and PCB footprint Compatibility.
