Product Introduction

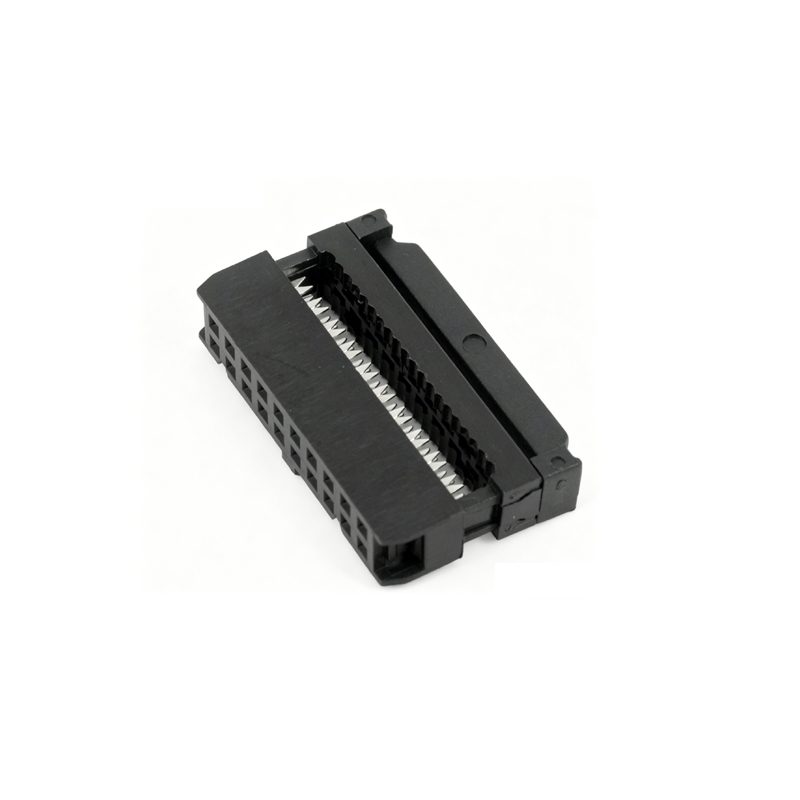

The IDC Connector 2.0mm Pitch is a professional insulation-displacement connector optimized for fast, solder-free wire termination in LED lighting, automotive wiring, and industrial equipment. Its 2.0mm compact pitch supports high-density wiring while mAIntaining excellent electrical and mechanical stability.
The connector uses a UL94 V-0 flame-retardant PBT glass fiber insulator for high temperature resistance and safety. Contacts are made of 0.20mm thick brass with nickel underplating and gold plating on the contact area, ensuring low Contact Resistance, oxidation resistance, and long service life.
Designed to withstand harsh environments, it operates reliably from -40°C to +105°C and meets strict electrical standards including 500V AC withstand voltage and high insulation resistance. Produced by Shenzhen Jihongfa Electronics, a national high-tech enterprise, this IDC connector delivers stable quality for mass production in automotive, LED, and electronic industries.

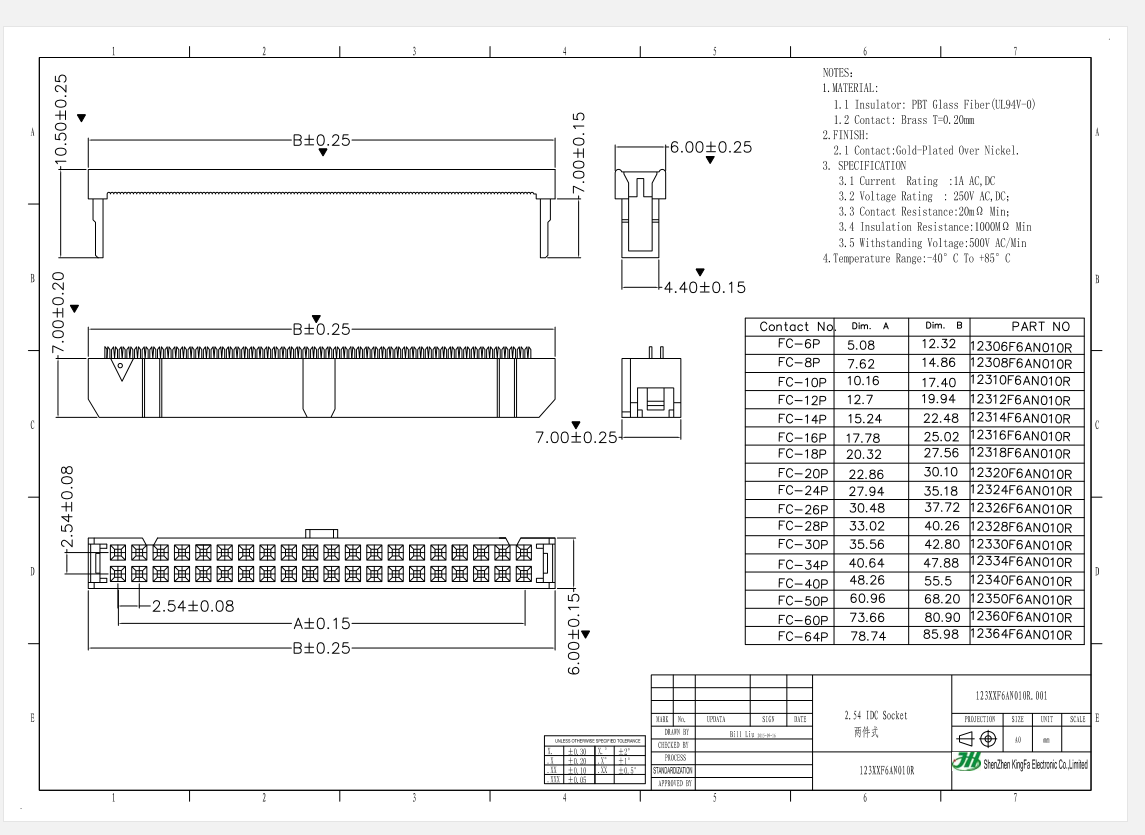

Key Specifications & Parameters
Product Type: IDC connector 2.0mm pitch
Pitch: 2.0mm
Insulator: PBT + Glass Fiber, UL94 V-0
Contact: Brass, T=0.20mm
Plating: Gold plated over nickel
Rated Current: 1A AC/DC
Rated Voltage: 250V AC/DC
Contact Resistance: ≤20mΩ
Insulation Resistance: ≥1000MΩ
Withstand Voltage: 500V AC/Min
Operating Temperature: -40°C ~ +105°C
Application: LED, wire harness, PCB, automotive
Certifications: ISO9001, ISO14001, IATF16949
Core Features
2.0mm pitch for high-density LED and PCB wiring
UL94 V-0 flame-retardant PBT housing for high safety
Brass contacts with nickel-gold plating for low and stable resistance
Solder-free IDC termination for fast assembly
Wide temperature range -40°C ~ +105°C
High withstand voltage 500V AC and strong insulation
Excellent anti-vibration and anti-loosening performance
Compatible with automated mass production
Automotive-grade quality for vehicle applications
Main Functions
Enables solder-free insulation displacement connection for flat cables and wires
Transmits power and signals for LED lighting modules
Provides stable connection in Automotive Wire harness systems
Supports high-density PCB and equipment internal wiring
Maintains reliable performance under high and low temperatures
Ensures long-term stable contact in vibration environments
Specific Application Scenarios
LED light strips, LED modules, advertising lighting
Automotive wire harness and body electrical systems
New energy vehicle BMS, lighting and control modules
Industrial control equipment and instrumentation wiring
Consumer electronics, small home appliances
Computer motherboard and communication equipment
PCB internal wiring and cable assembly
FAQ
What does IDC mean?
IDC = Insulation Displacement Connector, which allows wire connection without stripping insulation or soldering.
What is the pitch of this connector?
It is 2.0mm pitch, suitable for high-density LED and electronic wiring.
Is the housing flame retardant?
Yes, it uses PBT GF material with UL94 V-0 flame retardant grade.
Are the contacts gold plated?
Yes, contacts are gold plated over nickel base for better conductivity and anti-oxidation.
What is the operating temperature range?
-40°C to +105°C, suitable for automotive and industrial environments.
Can it be used in new energy vehicles?
Yes, it meets IATF16949 standards and is widely used in automotive lighting and wiring.
Is soldering required?
No, it uses IDC crimping connection, fast and convenient for mass production.
