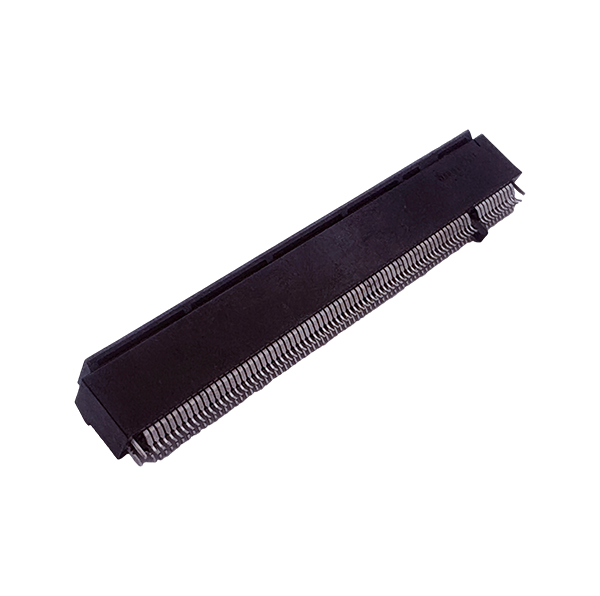

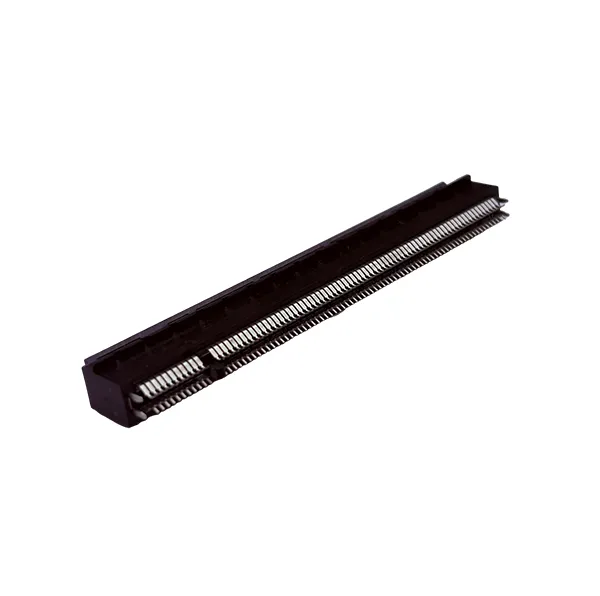

Model: PCIE 16X board GEN5
The High Frequency High Speed Connector represents the pinnacle of interconnect technology, specifically engineered to handle the demanding requirements of radio frequency (RF) and microwave applications. These sophisticated components are designed to mAIntain Signal Integrity at extremely high frequencies while providing reliable, repeatable connections in critical electronic systems. Jingtu's high frequency high speed connectors combine advanced materials, precision engineering, and rigorous testing to deliver exceptional performance in the most challenging high-frequency environments.
As wireless technology advances toward higher frequency bands and greater bandwidth requirements, the role of RF high speed connectors becomes increasingly crucial. These connectors serve as the vital interface points in systems where signal quality, phase stability, and impedance matching are paramount to overall system performance. From 5G infrastructure to aerospace radar systems, our connectors provide the reliable high-frequency performance that modern electronic systems demand.
Primary Keyword: High Frequency High Speed Connector
Secondary Keywords: RF high speed connector, microwave frequency connector, high speed coaxial connector, millimeter wave connector, high frequency interconnects.
A High Frequency High Speed Connector is a specialized interconnect component designed to transmit high-frequency signals with minimal degradation, typically operating in the RF through millimeter-wave frequency ranges. These connectors feature precision-engineered interfaces, controlled impedance characteristics, and advanced dielectric materials to maintain signal integrity at frequencies ranging from several GHz to over 100 GHz. Unlike standard connectors, high frequency versions incorporate sophisticated designs that minimize signal reflection, insertion loss, and electromagnetic radiation across their operational bandwidth.
The fundamental purpose of these connectors is to provide reliable interfaces between components in high-frequency systems while preserving signal quality and system performance. As applications continue to push toward higher frequencies and faster data rates, the high frequency connector solution addresses the unique challenges of RF signal transmission, including impedance control, phase stability, and passive intermodulation (PIM) performance.
1. Exceptional High-Frequency Performance
Broad Frequency Range: Support for operations from DC to 110 GHz, accommodating current and emerging frequency requirements
Superior VSWR Performance: Typical VSWR ratings of 1.3:1 or better, ensuring minimal signal reflection and maximum power transfer
Low Insertion Loss: Advanced dielectric materials and precision machining minimizing signal attenuation at high frequencies
2. Precision Engineering & Construction
Air Dielectric Technology: Implemented in higher-frequency models to reduce dielectric losses and improve signal integrity
Precision Interface Design: Sub-micron tolerance machining ensuring consistent electrical performance and mating reliability
Advanced Contact Systems: Beryllium copper or phosphor bronze contacts with selective gold plating for optimal RF performance
3. Robust Mechanical Design
Secure Coupling Mechanisms: Precision thread, push-on, or bayonet-style coupling mechanisms ensuring stable connections under vibration
Environmental Sealing: IP67 and higher ratings available for operation in harsh environmental conditions
Durability: Rated for 500-5000 mating cycles depending on connector series and application requirements
4. Advanced Material Selection
Low-Loss Dielectrics: PTFE, polyethylene, or air dielectric materials optimized for high-frequency performance
Corrosion-Resistant Materials: Stainless steel, brass, or aluminum bodies with various plating options for environmental protection
Thermal Management Materials: Designs accommodating thermal expansion and maintaining performance across wide temperature ranges
5. Application-Specific Variants
Phase-Matched Sets: Matched connector pairs ensuring consistent phase characteristics in phased array systems
Low PIM Designs: Special configurations minimizing passive intermodulation for sensitive receiver applications
High-Power Versions: Connectors rated for high power transmission with appropriate voltage standing wave ratio
Proven RF Performance: Extensive testing and validation using vector network analyzers and other RF test equipment
Reliability in Demanding Environments: Qualification for military, aerospace, and Industrial Applications with stringent requirements
Global Compliance: Meeting international standards including MIL-PRF-39012, IEC 61169, and other relevant specifications
Technical Expertise: Comprehensive application support from RF engineers with deep domain knowledge
Customization Capability: Ability to develop modified or completely custom designs for specific application needs
High Frequency High Speed Connectors are essential components in numerous advanced electronic systems:
5G and Wireless Communications: Base station equipment, massive MIMO systems, and millimeter-wave backhaul
Aerospace and Defense: Radar systems, electronic warfare, satellite communications, and avionics
Test and Measurement: Network analyzers, signal generators, and high-frequency test equipment
Medical Systems: MRI equipment, medical imaging systems, and therapeutic medical devices
Automotive Radar: ADAS systems, collision avoidance, and autonomous vehicle sensors
Industrial Electronics: RF heating equipment, plasma generation, and industrial monitoring systems
Research and Development: University laboratories, research institutions, and prototype development
