Product Introduction

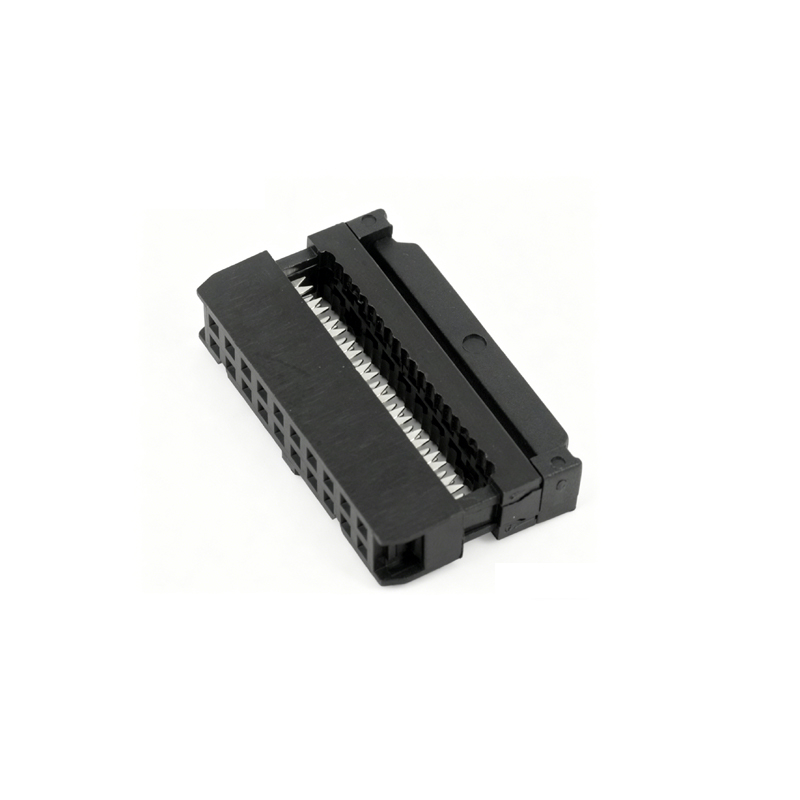

This FC IDC 16P connector adopts a standard 2.54mm pitch, specially designed for flat ribbon cable crimping and PCB internal signal transmission. The insulator is made of PBT plus glass fiber with UL94 V-0 flame retardant level, which has high temperature resistance and excellent mechanical strength. The contact terminal is brass with thickness 0.20mm, treated with nickel bottom and gold plating on the surface, ensuring low and stable Contact Resistance, anti-oxidation and long service life.

It supports reliable operation under -40°C to +105°C, with 1A/250V rated current and voltage, 500V AC withstand voltage, and high insulation resistance. The IDC structure realizes fast wire crimping without stripping or soldering, greatly improving assembly efficiency. It is widely used in computer equipment, industrial control, Automotive Wire harness, new energy vehicle modules and other fields.

Key Specifications & Parameters

• Product Type: FC IDC 16-Pin Connector Plug

• Pitch: 2.54mm

• Pin Count: 16 pins

• Insulator Material: PBT + Glass Fiber, UL94 V-0 Flame Retardant

• Contact Material: Brass, T=0.20mm

• Surface Plating: Gold-Plated Over Nickel

• Rated Current: 1A AC/DC

• Rated Voltage: 250V AC/DC

• Contact Resistance: ≤ 20mΩ

• Insulation Resistance: ≥ 1000MΩ

• Withstanding Voltage: 500V AC for 1 Minute

• Operating Temperature: -40°C to +105°C

• Connection Type: IDC insulation displacement, solder-free

Core Features

• Standard 2.54mm pitch design for universal Compatibility with common flat ribbon cables.

• UL94 V-0 flame-retardant PBT GF housing ensures high safety and temperature resistance.

• Gold-plated brass contacts provide stable conductivity and strong anti-corrosion performance.

• IDC structure enables quick crimping without wire stripping or soldering.

• Wide temperature range supports reliable use in automotive, industrial, and outdoor environments.

• Excellent electrical performance with high insulation and voltage withstanding capacity.

• Compact structure for high-density PCB layout and space-saving installation.

• Strong anti-vibration and anti-loosening performance for long-term stable connection.

MAIn Functions

• Realizes solder-free insulation displacement connection for 2.54mm flat ribbon cables.

• Transmits low-current power and control signals steadily in electronic equipment.

• Provides reliable board-to-cable connection for industrial and automotive applications.

• Ensures stable electrical performance under extreme temperature and vibration conditions.

• Supports fast mass assembly to improve production efficiency in wiring harness manufacturing.

Specific Application Scenarios

• Computer and office equipment: Motherboards, industrial control boards, printers, and scanners.

• Automotive electronics: Body wiring harnesses, infotainment systems, and sensor modules.

• New energy vehicles: BMS, charging modules, lighting systems, and control units.

• Industrial automation: PLC, robotic systems, instrumentation, and control panels.

• Consumer electronics: Smart devices, audio equipment, and small household appliances.

• Telecommunication devices: Routers, network switches, and communication modules.

• Electronic wire harness: Mass production of signal cables and internal wiring components.

•


FAQ (Frequently Asked Questions)

Q1: Does this IDC 16P connector require soldering during installation?

A1: No, it uses insulation displacement technology. You only need a crimping tool to fix the ribbon cable without stripping or soldering.

Q2: What type of cable is compatible with this 2.54mm IDC Connector?

A2: It is designed for standard 16-pin flat ribbon cables with 2.54mm pitch, widely used in electronic and industrial wiring.

Q3: Can this connector be used in automotive environments?

A3: Yes. It supports a temperature range of -40°C to +105°C and has strong anti-vibration performance, making it suitable for automotive electronic systems.

Q4: Why is gold plating applied to the contacts?

A4: Gold plating improves electrical conductivity, lowers contact resistance, prevents oxidation and corrosion, and extends service life in harsh environments.

Q5: Is the housing flame retardant?

A5: Yes. The insulator is made of PBT glass fiber with UL94 V-0 flame retardant rating, meeting industrial and automotive safety standards.

Q6: What is the maximum voltage this IDC connector can withstand?

A6: It can withstand 500V AC for one minute, with a rated working voltage of 250V AC/DC, ensuring safe and stable operation.
