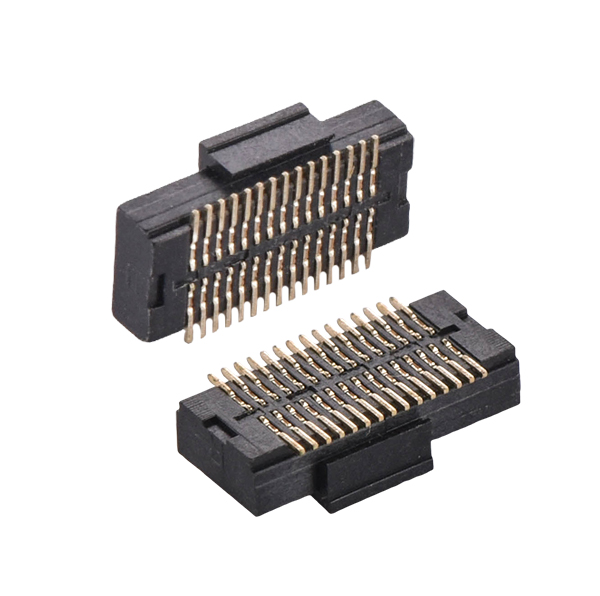

The 2x15P Double Slot female connector (0.5×2.2mm pitch) is a high-density, 30-pin IDC-type PCB connector engineered for reliable power, signal, and high-frequency Data Transmission. With a dual-row, 2×15 pin layout, it provides stable electrical connectivity in compact electronic systems where space efficiency and durability are essential.
Built with high-temperature thermoplastic housing and gold-plated copper alloy contacts, this connector ensures:
High conductivity
Strong corrosion resistance
Reliable performance across 500+ mating cycles
The side-entry double-slot design reduces vertical height requirements, making it ideal for miniaturized PCBs, industrial modules, and communication equipment that demand long-term stable connections.
1. High-Density 30-Pin Design
2×15 contact configuration enables efficient power and signal routing within a compact connector footprint.
2. Side-In Double Slot Structure
Horizontal side-entry mating reduces vertical space and simplifies PCB layout in dense assemblies.
3. Gold-Plated Contacts for Superior Conductivity
Low insertion loss
High-frequency transmission support
Enhanced anti-corrosion performance
Ideal for high-speed data, precision control, and mixed-signal applications.
4. Rugged Insulating Housing
Made with UL94V-0 flame-retardant thermoplastic, offering excellent resistance to:
Heat
Dust
Vibration
Mechanical stress
5. Long-Term Mechanical Durability
Designed for 500+ mating cycles, ensuring stable performance in industrial or frequently serviced devices.
6. Easy & Flexible Installation
Supports multiple assembly methods:
Snap-in
Screw mounting
Simple integration for automated and manual production lines.
The 2x15P Double Slot Side-In Female Connector is widely used in sectors requiring compact, stable, and long-life PCB interconnects:
High-density signal routing with minimal space usage.
Reliable data transmission under vibration and continuous operation.
Supports both power and mixed-signal interfaces.
High-frequency signal stability for routers, telecom modules, and data systems.
Durable, side-entry design fits compact mechanical structures.
Provides stable and accurate signal interface in measurement systems.
A: It features 30 pins (2 rows × 15), suitable for high-density PCB layouts.
A: Yes. The gold-plated contacts ensure stable high-speed Signal Integrity with low interference.
A: It supports 500+ mating cycles, mAIntaining consistent electrical performance.
A: Absolutely. The connector is designed for mixed power + signal applications depending on your current and voltage requirements.
A: No. It supports snap-in or screw-in mounting, enabling fast and secure assembly.
