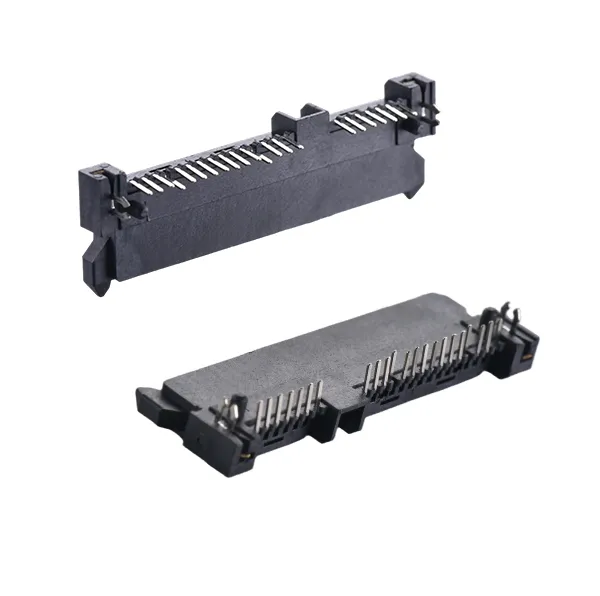

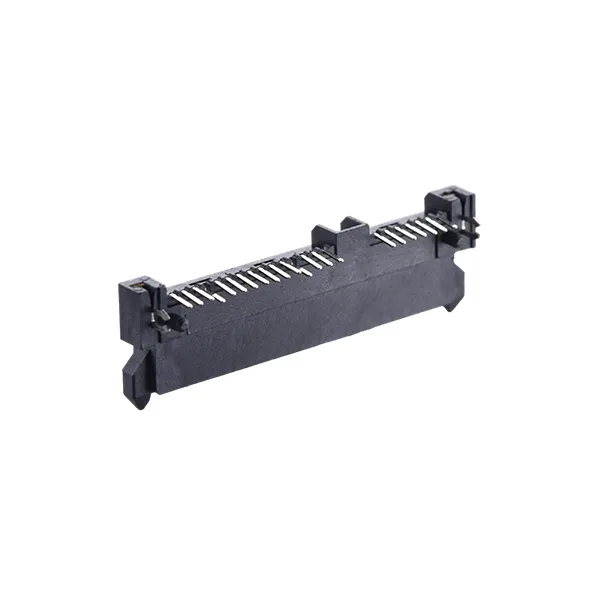

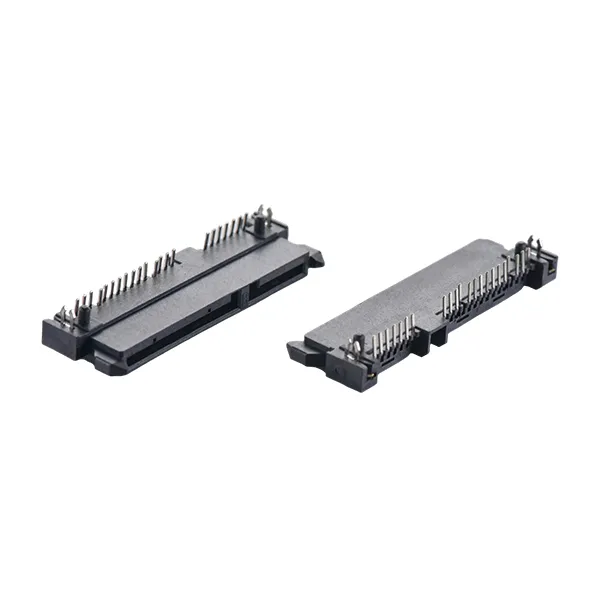

The SATA 7+15P DIP Female Socket Board-Level Connector (4.2mm) is a precision-engineered SATA interface designed for stable data and power transmission between storage devices (HDDs, SSDs) and printed circuit boards (PCBs).
With 7 data pins and 15 power pins, it fully complies with SATA standards, ensuring high-speed performance, secure connectivity, and long-term reliability for computing, industrial, and embedded systems.
This through-hole (DIP) mounting connector provides strong mechanical stability, preventing loose contacts and ensuring consistent performance even under vibration or temperature changes.
Constructed from high-insulation plastic housing and gold/tin-plated contacts, it delivers excellent conductivity, corrosion resistance, and Signal Integrity—making it ideal for applications that demand durability and precision.
Complete 22-Pin SATA Interface
Integrates 7 data pins and 15 power pins to provide both data transfer and power delivery through a single compact connector.
Through-hole soldering ensures strong board retention and mechanical stability, reducing connection fAIlure risks.
Supports SATA III (6Gbps) with low signal loss, optimized for high-performance HDD and SSD devices.
Flame-retardant housing and plated contacts provide long service life, oxidation resistance, and consistent conductivity.
Designed for OEMs and PCB assemblers, simplifying production, maintenance, and product upgrades.
Supports hundreds of insertion/removal cycles while maintaining stable signal and power transmission.
The SATA 7+15P DIP Female Socket is widely adopted across industries that require dependable, high-speed, and space-saving SATA connections:
Computing & Storage Devices – Motherboards, servers, and NAS systems for HDD/SSD integration
Industrial Automation Systems – Data acquisition and control modules exposed to vibration and dust
Communication & Networking Equipment – Routers, base stations, and telecom servers
Embedded Systems & IoT Devices – Compact PCBs for intelligent electronics and edge computing
Medical & Measurement Equipment – Reliable SATA links under continuous operation
OEM/ODM Assemblies – Custom storage boards and system integration projects
A: It refers to 7 data pins and 15 power pins, providing both data and power interfaces for SATA devices.
A: Yes, it’s fully compliant with SATA standards, supporting SATA I, II, and III drives (HDDs and SSDs).
A: The DIP through-hole design ensures stronger solder joints, making it more suitable for vibration-prone or industrial environments.
A: It supports SATA III speeds up to 6Gbps, maintaining signal stability through plated contacts.
A5: No. It’s optimized for wave soldering and manual or automated PCB assembly, saving manufacturing time.
