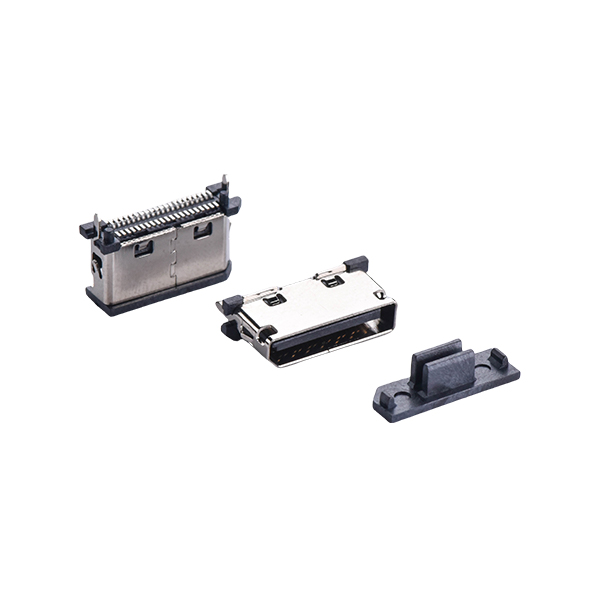

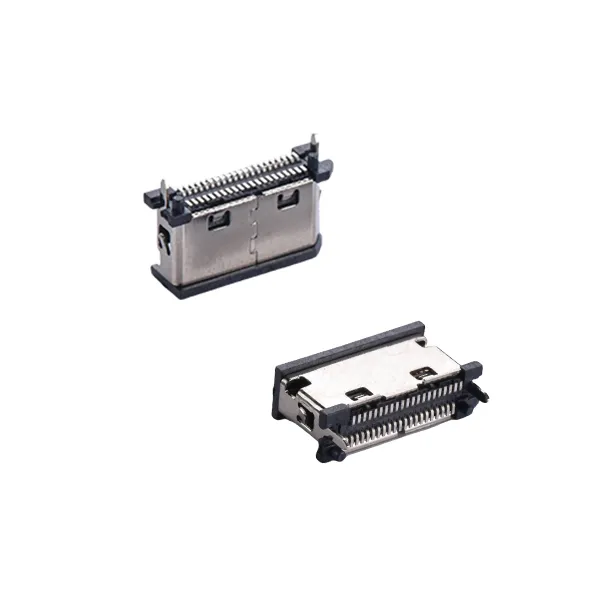

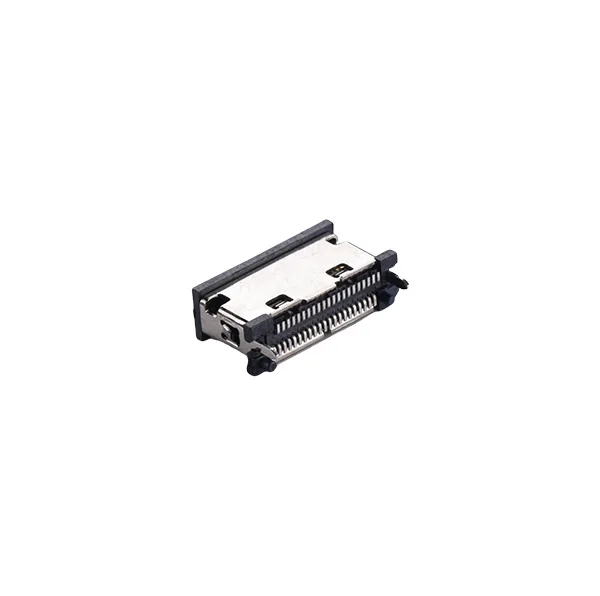

The SFF-8612 4X Vertical Male Connector, commonly known as an OCuLink PCIe x4 vertical connector, is a high-speed, high-density board-to-board interface widely used in enterprise storage systems, servers, data centers, AI computing, and industrial equipment. Designed according to the SFF-8612 standard, this vertical male connector supports PCIe Gen4 and Gen5, providing up to 128 Gbps bandwidth over four PCIe lanes. Its vertical mount design helps engineers reduce PCB space usage, improve airflow, and enable high-density system layouts. With gold-plated contacts, a robust plastic housing, and a secure latching mechanism, this connector ensures stable Signal Integrity, long-term durability, and reliable high-speed transmission even in demanding environments such as blade servers, NVMe storage arrays, HPC clusters, and industrial automation systems.
Saves PCB space in compact server and storage enclosures
Improves airflow inside high-density chassis
Ideal for vertical Cable Routing and tight system layouts
Supports 4 PCIe lanes (x4)
Ensures ultra-fast data transfer for NVMe SSDs, AI accelerators, and compute cards
Compatible with next-generation enterprise storage platforms
Minimal signal loss during high-speed operation
Withstands hundreds of mating cycles
High-strength plastic body ensures long-term stability
Resistant to dust, humidity, vibration, and heat
Suitable for data center, industrial, and edge computing systems
Prevents accidental cable disconnects
Ensures stable Data Transmission under vibration
Ideal for rack-mounted and mobile systems
The SFF-8612 4X Vertical Male Connector is widely used in:
● Enterprise NVMe Storage Systems Supports high-speed SSD interconnections such as OCuLink-to-NVMe, motherboard-to-backplane PCIe routing.
● High-Density & Blade Servers Vertical mounting saves space and improves cooling for 1U/2U servers.
● AI Computing & HPC (High Performance Computing) Used for GPU/accelerator cards, AI inference systems, and machine learning clusters.
● Data Centers & Cloud Platforms Ideal for high-bandwidth interconnects with stable long-term reliability.
● Industrial Automation & Edge Computing Reliable PCIe connectivity under shock, vibration, and harsh environments.
A: It reduces PCB footprint, improves airflow, and allows more compact server/storage layouts.
A: Yes. It fully supports PCIe Gen4 and Gen5 devices, up to 128 Gbps bandwidth.
A: Absolutely. The vertical design is engineered for compact chassis and rack-mounted systems.
A: Gold-plated contacts ensure stable performance over hundreds of mating cycles.
A: Yes. The rugged housing and corrosion-resistant contacts maintain stable PCIe signals in harsh environments.
