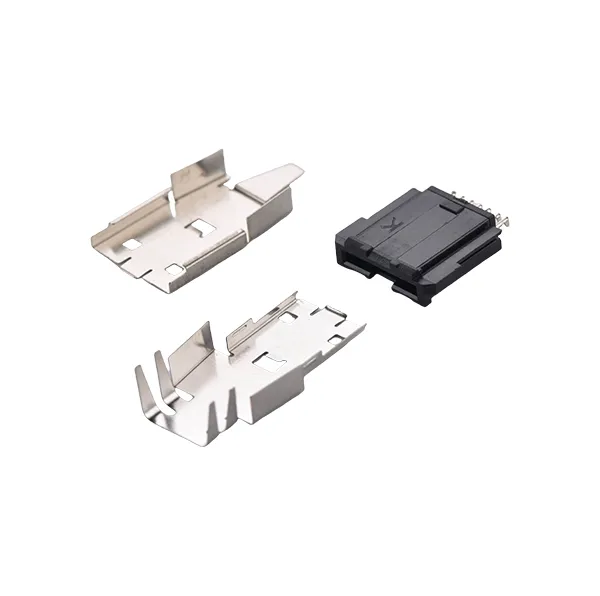

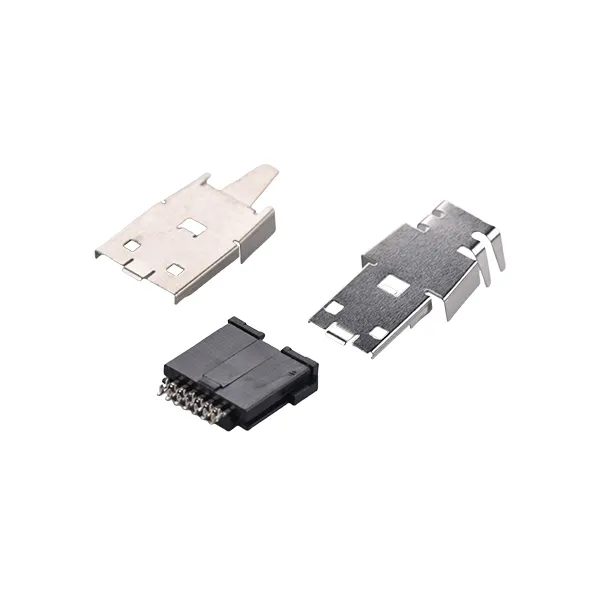

The ESATA 7-pin female connector (three-piece kit) is designed for high-speed external storage connections, delivering reliable SATA data transfer up to 6 Gb/s (SATA III).
This kit includes:
Female socket – secure panel-mounted interface
male header – stable connection for host devices
Protective cover – shields contacts from dust and mechanical stress
Built with gold or nickel-plated contacts and durable insulating plastic housing (UL94V-0), it provides excellent electrical conductivity, corrosion resistance, and long-term durability. Its three-piece construction simplifies assembly, mAIntenance, and field replacement, making it a dependable solution for external HDDs, SSDs, RAID systems, and professional data applications.
High-speed performance – Supports SATA III (6 Gb/s) data transfer rates
Reliable construction – Gold/nickel plating ensures low resistance & stable signals
Three-piece design – Easy installation, replacement, and maintenance
Protective cover – Shields contacts against dust, vibration, and minor impact
Compact footprint – Ideal for external storage and high-density enclosures
Durable housing – High-temperature resistant plastics, RoHS/REACH compliant
The eSATA 7P female connector three-piece is widely applied in:
External HDD/SSD enclosures – reliable high-speed storage connections
Docking stations & data backup systems – fast transfer of large files
RAID systems & servers – stable performance for enterprise storage arrays
Professional video & multimedia equipment – supports 4K/8K editing workflows
Gaming & consumer electronics – detachable, durable external interfaces
Industrial automation – data acquisition modules requiring robust external links
Q: What is the maximum data transfer rate?
A: Supports up to 6 Gb/s (SATA III), backward compatible with SATA II/I.
Q: How do I connect devices using this connector?
A: The female socket mates with a standard eSATA male plug. For custom designs, solder or crimping options are available.
Q: Is it resistant to harsh environments?
A: The cover protects against dust and minor damage. For outdoor/industrial environments, use additional sealing or enclosure.
Q: Can it handle frequent plugging/unplugging?
A: Yes, designed for hundreds to thousands of mating cycles without significant wear.
Q: What should I check before choosing this connector?
A: Confirm pin layout, SATA generation (I/II/III), operating environment, and housing Compatibility.
