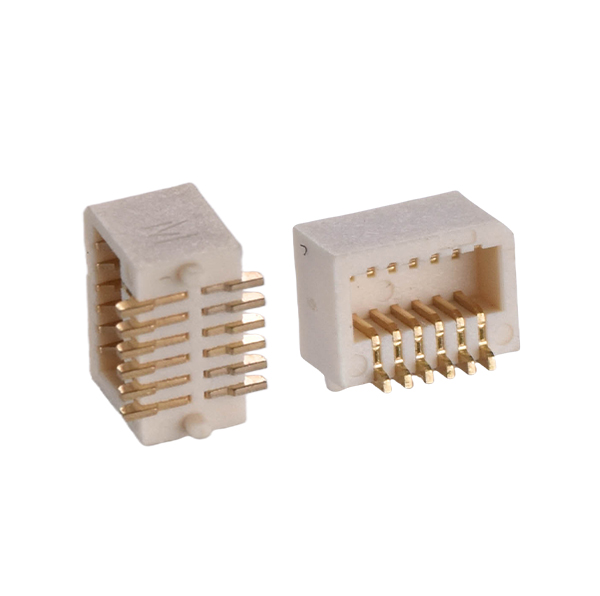

0.8mm Single Slot Side-In Female Connector

Product Introduction

The 0.8mm Single Slot Side-In Female Connector is a high-density, space-efficient board-to-board interconnect designed for electronic devices where PCB space, stability, and high performance are critical. With a fine 0.8mm pitch and a side-entry horizontal mating structure, this connector helps engineers reduce Z-axis height, simplify assembly, and mAIntain strong electrical performance in compact devices.

Manufactured with high-temperature engineering plastics and gold-plated copper alloy contacts, it delivers:

Low Contact Resistance for stable power and signal transmission

High Signal Integrity suitable for high-speed and high-frequency applications

Excellent durability, supporting hundreds of mating cycles

Strong corrosion and environmental resistance, ensuring long-term reliability

The side-in mating mechanism provides quick, tool-free installation, improving production efficiency and reducing assembly errors in space-constrained PCB layouts

Product Advantages

1. Ultra-Compact, High-Density Design

The 0.8mm pitch and slim single-slot housing support advanced miniaturized PCB layouts, ideal for next-generation electronics.

2. Reliable Side-In Mating Mechanism

Side-entry horizontal mating reduces vertical height, enabling low-profile device design and simplifying module stacking.

3. Gold-Plated Contacts for Superior Performance

Low electrical resistance

Stable high-speed signal transmission

Strong corrosion resistance

Extended product lifespan

4. Durable Housing for Harsh Environments

High-quality insulating materials ensure protection against:

Vibration

Moisture

Dust

Mechanical shocks

Temperature changes

5. Consistent and Secure Connection

Precision contact alignment minimizes misalignment, reduces connection failures, and ensures stable long-term operation

Typical Applications

This 0.8mm side-in female connector is widely used across industries requiring compact, reliable, and high-speed board-to-board connectivity, including:

Consumer Electronics

• Smartphones

• Tablets

• Wearable devices

• Portable medical equipment

IoT & Embedded Systems

• Smart sensor modules

• Wireless transmission modules

• Compact control boards

• Edge computing devices

Industrial Automation & Robotics

• Control modules

• Compact motor controllers

• High-density sensor interfaces

Medical & Diagnostic Devices

• Portable monitors

• Diagnostic equipment

• Handheld imaging devices

Communication Equipment

• Routers

• RF modules

• Compact data processing modules

Its robust performance and compact footprint make it ideal for vibration-prone, dusty, or temperature-varying environments.

Q&A

Q: What is the pitch and structure of this connector?

A: It features a 0.8mm pitch with a single-row, side-in female slot, optimized for compact PCB layouts requiring horizontal mating.

Q: Can it support high-speed or high-frequency data?

A: Yes. The gold-plated contacts are engineered for high-speed, low-loss signal transmission suitable for digital and RF applications.

Q: How durable is the connector?

A: The connector is designed for hundreds of mating cycles, providing stable mechanical and electrical performance over long-term use.

Q: Can this connector transmit both power and data?

A: Yes. It supports mixed signal + power transmission, depending on your specific PCB design and electrical load.

Q: Is installation difficult?

A: No. The side-entry design allows quick, tool-free assembly and easy maintenance, making it suitable for automated and manual production lines.

Q: Do you offer customization?

A: Yes. Pin count, materials, plating thickness, housing color, and packaging can be customized for OEM/ODM projects.
