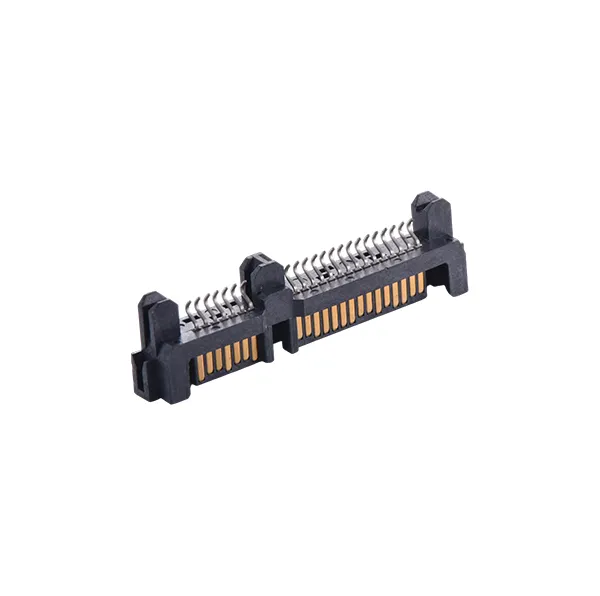

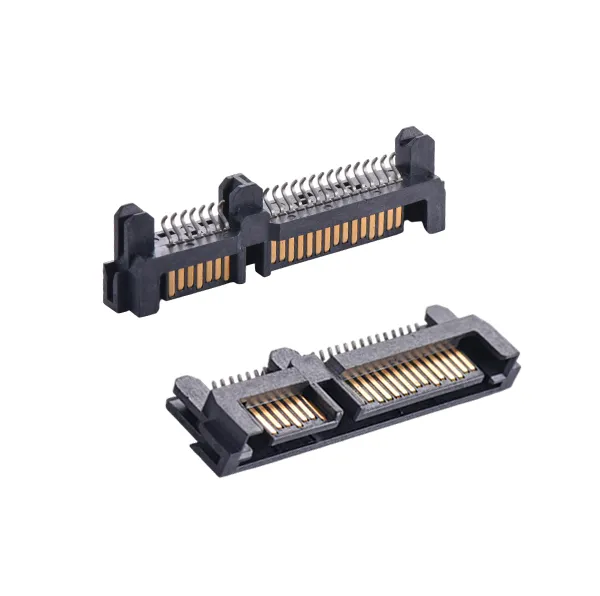

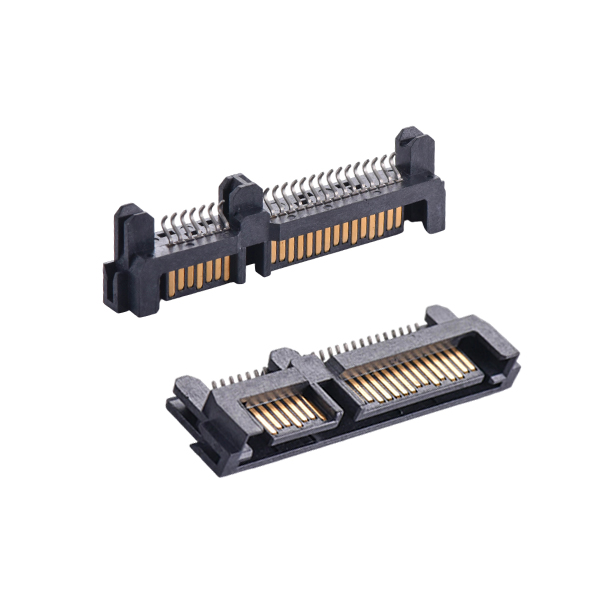

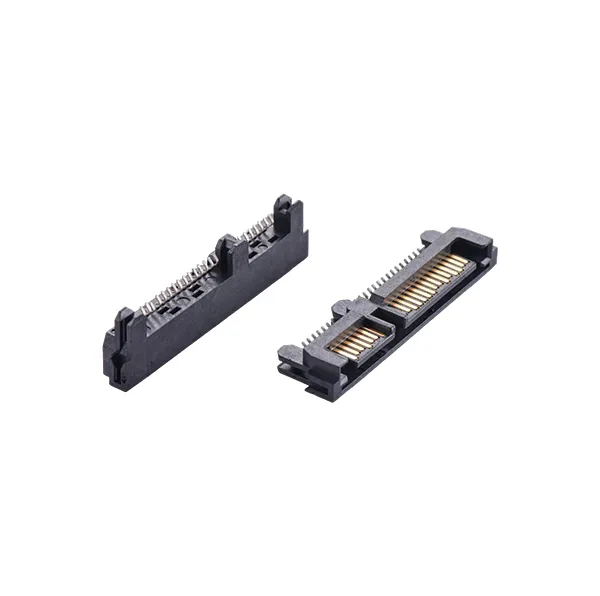

SATA 7+15 Clamp-Style Male Connector

Product Introduction

The SATA 7+15 clamp-style male connector is a professional-grade 22-pin SATA power + data interface designed for devices requiring stable, high-speed Data Transmission and secure mechanical locking. With 7 data pins and 15 power pins, it fully supports SATA I/II/III HDDs, SSDs, and other storage devices.

Compared with standard SATA Connectors, the clamp-style mechanical design provides additional retention strength, preventing accidental unplugging and ensuring safe operation in vibration-prone or mission-critical environments. Built with high-temperature plastic housing and gold/nickel-plated contacts, this connector ensures long-term conductivity, corrosion resistance, and superior Signal Integrity.

This connector is ideal for industrial equipment manufacturers, server and storage designers, embedded system developers, and any application requiring reliable SATA power and data connectivity.

Product Advantages

Secure Clamp-Style Locking Mechanism

A reinforced clamp secures the connection to the SATA female port, preventing loose connections and improving vibration resistance.

Keywords：clamp-style SATA connector, locking SATA male connector

High-Speed SATA III (6Gbps) Compatibility

Gold/nickel-plated contacts reduce resistance and mAIntain signal integrity, fully supporting SATA 6Gbps data rates.
Keywords：SATA III connector, high-speed SATA interface

Durable 22-Pin Design (7+15)

Standardized pin layout compliant with SATA specifications for universal HDD/SSD compatibility.
Keywords：22-pin SATA connector, SATA 7+15 male connector

Industrial-Grade Materials & Long Service Life

Heat-resistant insulated housing
Corrosion-resistant plating
Withstands multiple insertion cycles without performance loss
Keywords：Industrial SATA connector, high-reliability SATA connector

Easy PCB Integration

Suitable for compact PCB layouts and various mechanical designs, simplifying assembly and reducing installation errors.
Keywords：SATA board-level connector, PCB SATA connector

Typical Applications

This SATA 7+15 clamp-style male connector is widely used in both consumer and industrial systems, including:

Data Storage Systems

Enterprise HDD/SSD arrays, NAS, DAS, server storage modules.

Industrial Automation & Robotics

High-vibration environments requiring secure SATA locking.

Embedded & IoT Devices

Small-form-factor boards requiring secure SATA data + power interfaces.

Rugged Computing / Outdoor Equipment

Dust, moisture, or movement-heavy environments.

Medical & Communication Equipment

Systems requiring stable long-term signal transmission.

Keywords included: industrial SATA connector, embedded SATA interface, SATA for automation, secure SATA connector

Q&A

Q: How many pins does the SATA 7+15 clamp-style connector have?

A: It has 22 pins total, including 7 data pins and 15 power pins, compliant with the SATA standard.
(keyword: 22-pin SATA male connector)

Q: Is this connector compatible with standard SATA HDDs and SSDs?

A: Yes. It meets SATA specifications and supports all SATA drives.
(keyword: compatible SATA connector)

Q: How secure is the clamp-style connection?

A: The built-in clamp provides a secure mechanical lock, preventing disconnection from vibration, shock, or cable movement.
(keyword: Locking SATA connector)

Q: Does it support SATA III 6Gbps high-speed transmission?

A: Absolutely. The gold/nickel-plated contacts ensure low impedance and stable high-frequency signals.
(keyword: SATA III connector 6Gbps)

Q: How durable is this connector for repeated use?

A: Designed for long lifecycle usage, it withstands hundreds of mating cycles without loss of performance.
