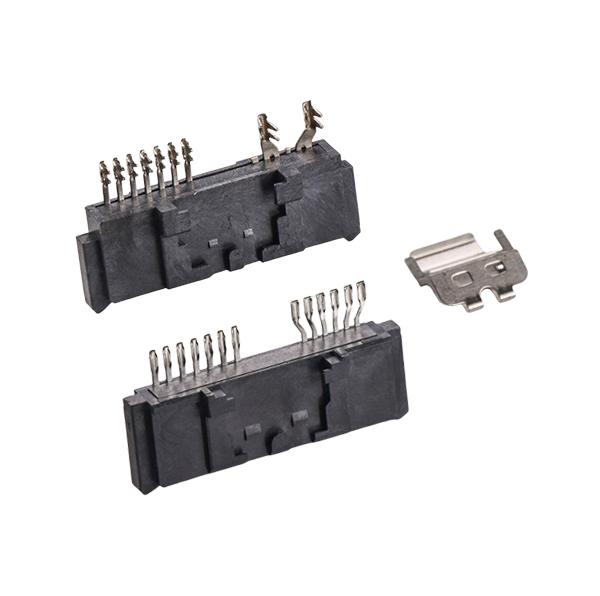

The SATA 7+6P spring-loaded female connector is a high-reliability SATA data and power interface designed for storage systems, industrial equipment, servers, and consumer electronics where stable electrical performance is critical.
Featuring a 13-pin configuration (7 data pins + 6 power pins), this connector fully complies with the Serial ATA (SATA) standard, supporting high-speed Data Transmission up to SATA III 6 Gbps while delivering stable power through a compact, space-saving interface.
The spring-loaded contact design mAIntains constant contact pressure between mating pins, significantly reducing Contact Resistance and preventing intermittent data or power loss. This makes the connector especially suitable for applications exposed to vibration, shock, movement, or frequent plug-and-unplug cycles.
Manufactured with high-temperature-resistant thermoplastic housing and gold/tin-plated copper alloy contacts, the connector offers excellent conductivity, corrosion resistance, and long service life. It is an ideal choice for system designers and OEM manufacturers seeking reliable, space-efficient SATA connectivity in demanding environments.
Spring-Loaded Contact Mechanism
Ensures consistent mating force, improving signal stability and preventing intermittent disconnections caused by vibration or mechanical stress.
SATA 7+6P (13-Pin) Configuration
Combines SATA data and power interfaces in one connector, supporting SATA III data rates up to 6 Gbps while minimizing PCB footprint.
Low Contact Resistance & High Conductivity
Gold/tin-plated copper contacts provide stable Signal Integrity, efficient power delivery, and resistance to oxidation.
Durable High-Temperature Housing
High-strength thermoplastic insulation protects against dust, heat, and mechanical wear in continuous-operation environments.
Long Mating Cycle Life
Designed for hundreds to thousands of mating cycles, suitable for docking stations and serviceable storage systems.
Easy System Integration
Compact and modular structure simplifies assembly, maintenance, and future system upgrades.
The SATA 7+6P spring-loaded female connector is widely used in:
Storage Systems
HDD/SSD enclosures, external storage devices, docking stations, and storage backplanes.
Data Centers & Server Systems
Reliable SATA connections for continuous 24/7 data transmission.
Industrial & Automation Equipment
Industrial PCs, control systems, and surveillance devices exposed to vibration.
Consumer Electronics
Gaming consoles, professional media servers, and high-performance desktop PCs.
Medical & Embedded Systems
Applications requiring high contact reliability and precise data transfer.
A: The spring-loaded structure maintains constant contact pressure, reducing contact resistance and preventing data or power interruptions caused by vibration or repeated mating.
A: Yes. It fully supports SATA III data rates up to 6 Gbps, making it suitable for modern storage and data-intensive systems.
A: Yes. The connector is designed for hundreds to thousands of mating cycles, ensuring long-term reliability.
A: Yes. The durable housing and plated contacts resist dust and mechanical stress. For harsh or outdoor environments, additional sealing is recommended.
A: Key factors include data speed requirements, power delivery needs, mounting space, operating environment, and mating frequency. Custom OEM solutions are available upon request.
