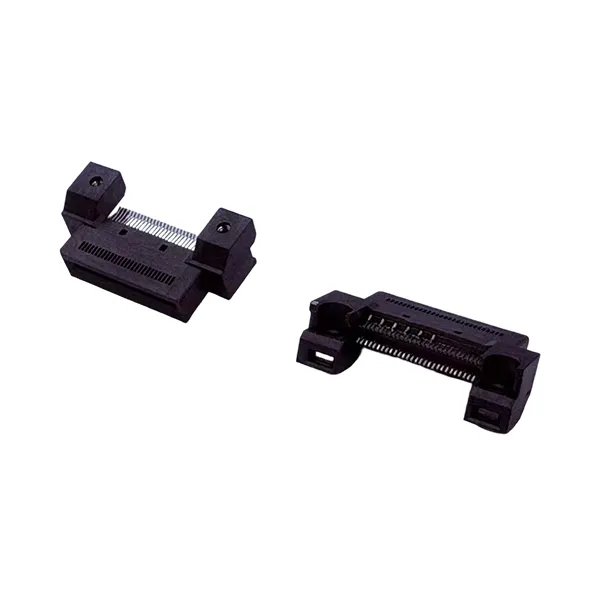

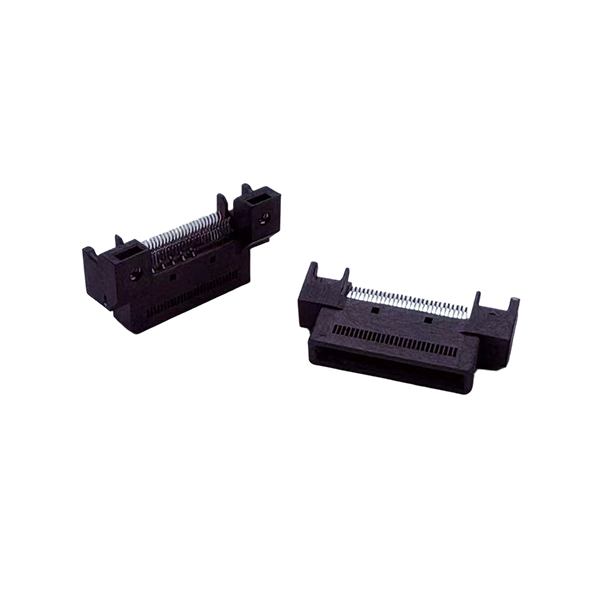

The Board-to-Board High Speed Connector represents a critical component in modern electronic systems, designed to facilitate reliable, high-frequency signal transmission between printed circuit boards (PCBs). These specialized connectors support the increasing demand for faster data rates, higher Signal Integrity, and greater connection density in compact electronic devices. Jingtu's board-to-board high speed connectors are engineered to meet the rigorous requirements of today's high-performance applications, from 5G infrastructure and automotive electronics to data centers and industrial automation.
As electronic systems continue to evolve toward higher speeds and greater miniaturization, the role of high speed board connectors becomes increasingly vital. These components ensure that signal integrity is mAIntained while providing robust mechanical connections that withstand the challenges of vibration, thermal cycling, and long-term reliability requirements in demanding applications.
Primary Keyword: Board-to-Board High Speed Connector
Secondary Keywords: high speed PCB connector, high frequency board connector, high density board connector, high speed interconnects, board-to-board RF connector.
A Board-to-Board High Speed Connector is an electronic interconnect component specifically designed to transmit high-speed digital signals between separate printed circuit boards with minimal signal degradation. These connectors are characterized by their controlled impedance, optimized signal path geometry, and advanced materials that preserve signal integrity at multi-gigabit per second data rates. Unlike standard board-to-board connectors, high speed versions incorporate sophisticated design features to mitigate common high-frequency issues such as crosstalk, electromagnetic interference (EMI), and signal reflection.
The fundamental purpose of these connectors is to enable reliable high-speed communication between system components while accommodating the mechanical constraints of modern electronic packaging. As data rates continue to increase in applications ranging from consumer electronics to industrial equipment, the high speed board-to-board solution provides the necessary electrical performance without compromising mechanical reliability or manufacturing feasibility.
1. Superior Signal Integrity
Controlled Impedance: Precision-engineered to maintain consistent impedance (typically 85Ω, 90Ω, or 100Ω) throughout the signal path
Advanced Shielding: Comprehensive shielding designs that minimize crosstalk and electromagnetic interference between adjacent circuits
Optimized Signal Path: Geometrically optimized contacts and housing designs that reduce signal reflection and insertion loss
2. High-Density Configuration
Fine Pitch Options: Available in pitch sizes from 0.4mm to 1.27mm, supporting high-density PCB layouts
Stacking Height Flexibility: Multiple stacking height options from 3mm to 20mm to accommodate various packaging requirements
High Pin Count: Support for configurations with hundreds of contacts in compact form factors
3. Robust Mechanical Performance
Secure Mating Mechanism: Precision latching systems ensuring reliable connection under vibration and mechanical stress
Durability: Rated for 50-100 mating cycles depending on application requirements
Mechanical Stability: Robust housing materials maintaining dimensional stability across operating temperature ranges
4. Advanced Material Technology
High-Frequency Materials: Low-loss dielectric materials minimizing signal attenuation at high frequencies
High-Temperature Plastics: LCP, PPS, or PCT materials capable of withstanding reflow soldering temperatures
Premium Contact Materials: Phosphor bronze or beryllium copper contacts with selective gold plating for optimal conductivity and durability
5. Application-Specific Designs
Differential Pair Configuration: Optimized for high-speed differential signaling protocols
Mixed Signal Capability: Support for combining high-speed signals with power and low-speed signals in single connectors
Modular Designs: Scalable configurations allowing customization of signal, power, and coaxial contacts
Proven High-Frequency Performance: Extensive signal integrity testing and validation for applications up to 25 Gbps and beyond
Reliability Assurance: Comprehensive qualification testing including thermal cycling, mechanical shock, and vibration testing
Manufacturing Compatibility: Designed for compatibility with standard PCB assembly processes including reflow soldering
Technical Support: Expert application engineering support for connector selection and implementation
Global Supply Chain: Reliable manufacturing capacity and global distribution network
Board-to-Board High Speed Connectors serve critical roles in numerous high-performance electronic systems:
5G Telecommunications: Base station equipment, massive MIMO systems, and network infrastructure components
Data Center Equipment: Servers, switches, routers, and storage systems requiring high-speed inter-board communication
Automotive Electronics: Advanced driver assistance systems (ADAS), infotainment systems, and vehicle networking
Industrial Automation: Machine vision systems, industrial controllers, and high-speed measurement equipment
Medical Imaging: MRI systems, CT scanners, and ultrasound equipment requiring high-data-rate signal transmission
Test & Measurement: High-frequency test equipment, oscilloscopes, and signal analyzers
Aerospace & Defense: Radar systems, avionics, and military communications equipment
